5962-9090801M2A

SKU: 107575

Manufacturer: Analog Devices

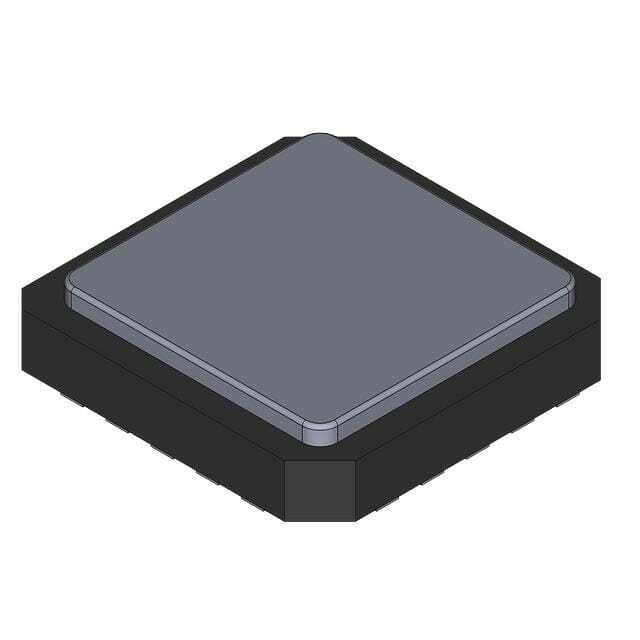

DAC 1-CH R-2R 8-bit 20-Pin CLLCC Tube

3230 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Not Compliant
ECCN (US)	3A001.a.2.c
Part Status	NRND
HTS	8542.39.00.01
SVHC	Yes
SVHC Exceeds Threshold	Yes
Automotive	No
PPAP	No
Converter Type	General Purpose
Architecture	R-2R
Resolution	8bit
Conversion Rate	143ksps
Number of DAC Channels	1
Number of Outputs per Chip	1
Maximum Settling Time (us)	20
Digital Interface Type	Parallel
Output Type	Voltage
Output Polarity	Unipolar
Voltage Reference	External
Minimum Single Supply Voltage (V)	14.25
Typical Single Supply Voltage (V)	15
Maximum Single Supply Voltage (V)	15.75
Minimum Dual Supply Voltage (V)	-4.5/11.4
Typical Dual Supply Voltage (V)	-5/12
Maximum Dual Supply Voltage (V)	-5.5/16.5
Power Supply Type	Single
Maximum Power Dissipation (mW)	450
Integral Nonlinearity Error	±0.5LSB
Full Scale Error	±1LSB
Digital Supply Support	No
Operating Temperature-Min	-55
Operating Temperature-Max	125
Packing Method	Tube
Supplier Temperature Grade	Military
Original Package	CLLCC
Pin Count	20
Standard Package Method	LLCC
Terminal Form	Surface Mount
Package Height	2.54(Max)
Package Length	9.09(Max)
Package Width	9.09(Max)
