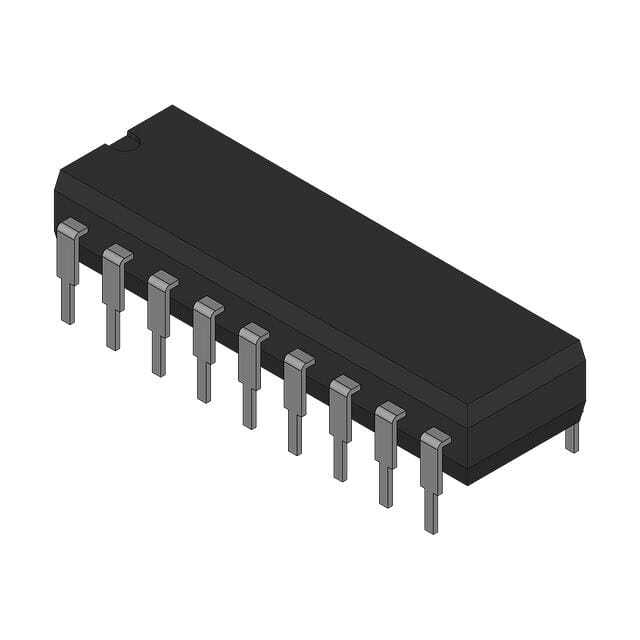

5962-8680202VA

SKU: 130515

Manufacturer: Analog Devices

1-Channel Single ADC SAR 10-bit Parallel 18-Pin SBCDIP Tube

3100 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Not Compliant
ECCN (US)	3A001.a.2.c
Part Status	NRND
HTS	8542.39.00.01
SVHC	Yes
SVHC Exceeds Threshold	Yes
Automotive	No
PPAP	No
Converter Type	General Purpose
Architecture	SAR
Resolution	10bit
Number of ADCs	1
Number of Input Channels	1
Digital Interface Type	Parallel
Input Type	Voltage
Input Signal Type	Single-Ended
Voltage Reference	Internal
Polarity of Input Voltage	Unipolar
Voltage Supply Source	Dual
Input Voltage	±5V
Minimum Dual Supply Voltage (V)	-12/4.5
Typical Dual Supply Voltage (V)	-15/5
Maximum Dual Supply Voltage (V)	-16.5/7
Maximum Power Dissipation (mW)	800
Integral Nonlinearity Error	±1LSB
No Missing Codes (bit)	10
Sample and Hold	No
Single-Ended Input	Yes
Digital Supply Support	No
Operating Temperature-Min	-55
Operating Temperature-Max	125
Packing Method	Tube
Supplier Temperature Grade	Military
Original Package	SBCDIP
Pin Count	18
Standard Package Method	DIP
Terminal Form	Through Hole
Package Height	3.56(Max)
Package Length	24.38(Max)
Package Width	7.87(Max)
PCB changed	18
