5962-8512702XA

SKU: 86393

Manufacturer: Analog Devices

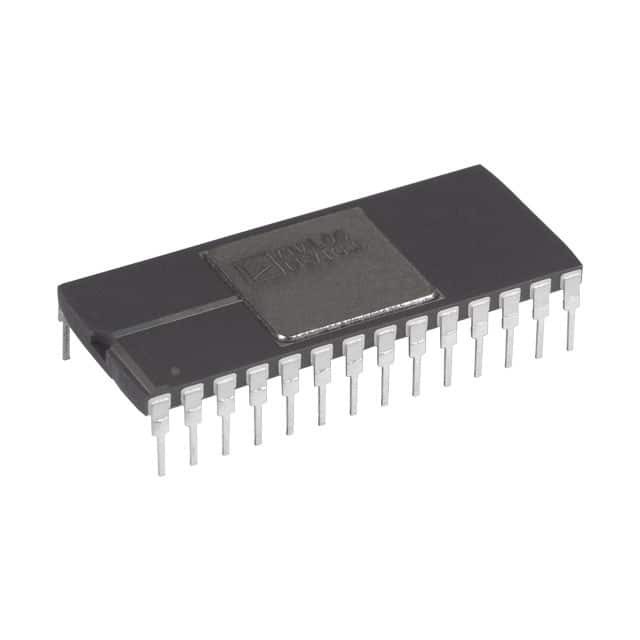

1-Channel Single ADC SAR 12-bit Parallel 28-Pin SBCDIP Tube

2280 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Not Compliant
ECCN (US)	3A001.a.2.c
Part Status	NRND
HTS	8542.39.00.01
SVHC	Yes
SVHC Exceeds Threshold	Yes
Automotive	No
PPAP	No
Converter Type	General Purpose
Architecture	SAR
Resolution	12bit
Number of ADCs	1
Number of Input Channels	1
Digital Interface Type	Parallel
Input Type	Voltage
Input Signal Type	Single-Ended
Voltage Reference	Internal
Polarity of Input Voltage	Unipolar
Voltage Supply Source	Dual
Input Voltage	10V/20V
Minimum Dual Supply Voltage (V)	±11.4
Typical Dual Supply Voltage (V)	±12
Maximum Dual Supply Voltage (V)	±16.5
Typical Power Dissipation (mW)	390
Maximum Power Dissipation (mW)	725
Integral Nonlinearity Error	±1LSB
No Missing Codes (bit)	12
Sample and Hold	No
Single-Ended Input	Yes
Digital Supply Support	Yes
Operating Temperature-Min	-55
Operating Temperature-Max	125
Packing Method	Tube
Supplier Temperature Grade	Military
Original Package	SBCDIP
Pin Count	28
Standard Package Method	DIP
Terminal Form	Through Hole
Package Height	4.2(Max)
Package Length	37.85(Max)
Package Width	15.49(Max)
PCB changed	28
