90312-003LF Amphenol ICC

90312-003LF

SKU: 143127

Manufacturer: Amphenol ICC

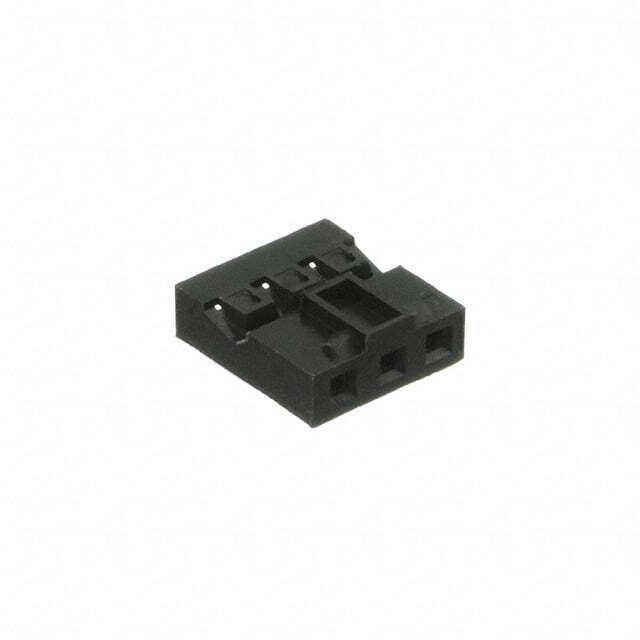

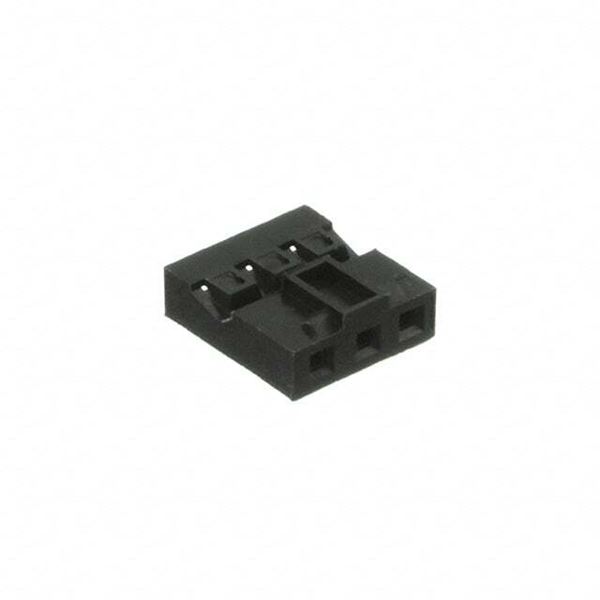

Crimp-to-Wire Housing, Single Row, Pol. w/Latch, 3 Position

Download sample

Request Free Samples

2400 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

QUANTITY

Increments of 0 pcs

Specifications
Contact Us

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8538.90.81.80
Automotive	No
PPAP	No
Type	Housing
Gender	RCP
Number of Contacts	3
Number of Rows	1
Termination Method	Crimp
Terminal Pitch (mm)	2
Body Orientation	Straight
Current Rating-Max(A)	2/Contact
Insulation Resistance (MOhm)	1000
Operating Temperature-Min	-40
Operating Temperature-Max	105
Mating Cycle (Cycles)	100
Packing Method	Bag
Length (mm)	6.4
Depth (mm)	2.6
Height (mm)	7.1
Tradename	Minitek®
Keyed	Yes
