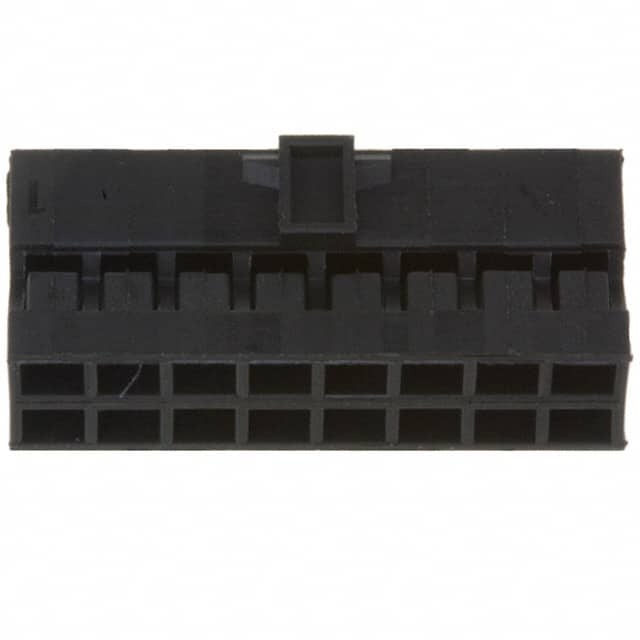

90311-016LF Amphenol ICC

90311-016LF

SKU: 150213

Manufacturer: Amphenol ICC

Crimp-to-Wire Housing, Double Row, Pol. w/Latch, 16 Position

Download sample

Request Free Samples

1880 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

QUANTITY

Increments of 0 pcs

Specifications
Contact Us

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8538.90.60.00
Automotive	No
PPAP	No
Type	Housing
Gender	RCP
Number of Contacts	16
Number of Rows	2
Termination Method	Crimp
Terminal Pitch (mm)	2
Body Orientation	Straight
Current Rating-Max(A)	2/Contact
Insulation Resistance (MOhm)	1000
Operating Temperature-Min	-40
Operating Temperature-Max	105
Mating Cycle (Cycles)	100
Packing Method	Bag
Length (mm)	16.4
Depth (mm)	4.7
Height (mm)	7.1
Tradename	Minitek®
Keyed	Yes
Row Spacing (mm)	2
