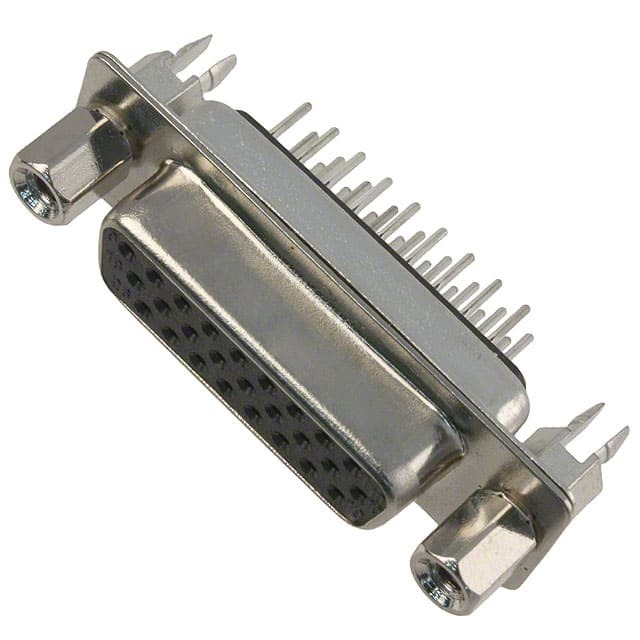

10090929-S264VLF

SKU: 29734

Manufacturer: Amphenol ICC

D-Sub High Density Board Mount Connectors, Input Output Connectors, 26-Way Female Straight, 200 Mating cycles

3810 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant with Exemption
ECCN (US)	EAR99
Part Status	Active
HTS	8536.69.80.00
Automotive	No
PPAP	No
Type	High Density D-Sub
Gender	RCP
Number of Contacts	26
Number of Terminals	26
Number of Ports	1
Number of Rows	3
Termination Method	Solder
Terminal Pitch (mm)	1.14
Body Orientation	Straight
Contact Gender	F
Current Rating-Max(A)	2.5/Contact
Voltage Rating-Max	250VAC
Insulation Resistance (MOhm)	5000
Maximum Contact Resistance (mOhm)	25
Operating Temperature-Min	-55
Operating Temperature-Max	105
Mating Cycle (Cycles)	50
Shell Body Material	Carbon Steel
Shell Plating	Nickel Over Copper
Shell Size	A
Less Contact	No
Length (mm)	39.24
Depth (mm)	12.55
Height (mm)	12.1
Contact Plating	Gold Over Nickel
Contact Body Material	Copper Alloy
