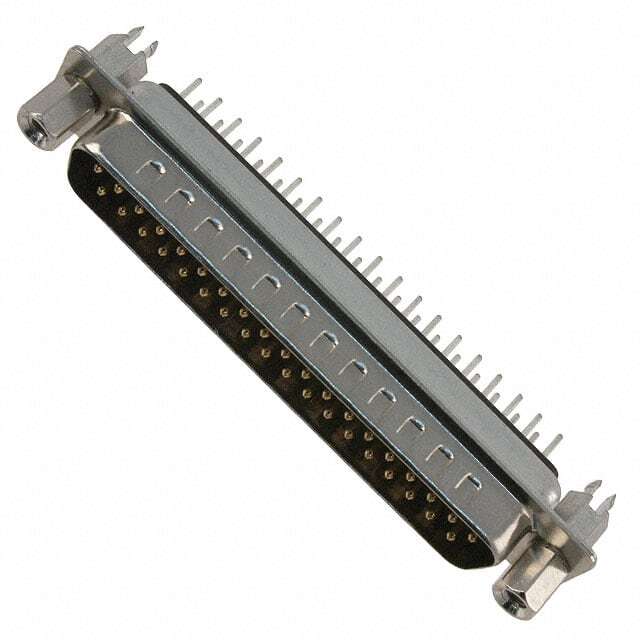

10090096-P374VLF

SKU: 100414

Manufacturer: Amphenol ICC

D-Subminiature Economy Range, Input Output Connectors, Signal 37 way Pin, Straight, Solder, 50 cycles, Harpoons + Female Screw UNC 4 - 40 + Elec cont

2180 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant with Exemption
ECCN (US)	EAR99
Part Status	Obsolete
SVHC	Yes
SVHC Exceeds Threshold	Yes
Automotive	No
PPAP	No
Type	D-Subminiature
Gender	PL
Number of Contacts	37
Number of Terminals	37
Number of Ports	1
Number of Rows	2
Termination Method	Solder
Terminal Pitch (mm)	1.38
Body Orientation	Straight
Contact Gender	M
Current Rating-Max(A)	5/Contact
Voltage Rating-Max	250VAC
Insulation Resistance (MOhm)	5000
Maximum Contact Resistance (mOhm)	25
Operating Temperature-Min	-55
Operating Temperature-Max	105
Mating Cycle (Cycles)	50
Shell Body Material	Steel
Shell Plating	Nickel Over Copper
Shell Size	C
Less Contact	No
Length (mm)	69.32
Depth (mm)	12.55
Height (mm)	13.1
Contact Plating	Gold Over Nickel
Contact Body Material	Copper Alloy
