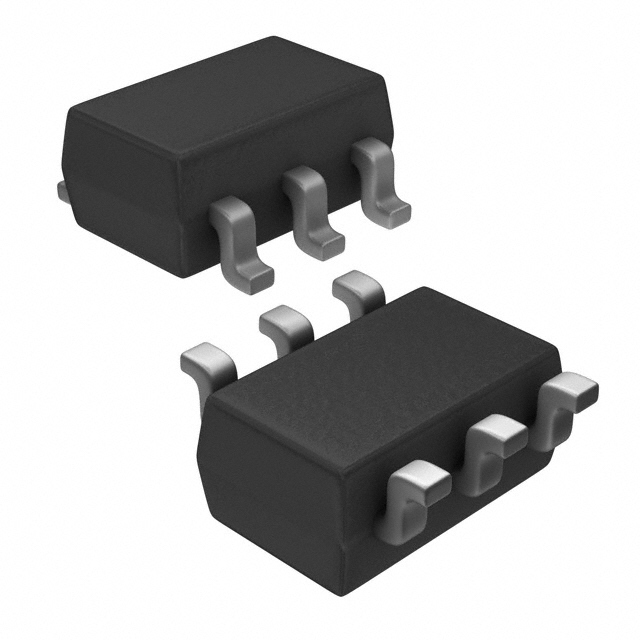

AO6424

SKU: 67344

Manufacturer: Alpha and Omega Semiconductor

Trans MOSFET N-CH 30V 5A 6-Pin TSOP T/R

13070 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
Automotive	Unknown
PPAP	Unknown
Product Category	Power MOSFET
Configuration	Single Quad Drain
Channel Mode	Enhancement
Channel Type	N
Number of Elements per pcs	1
Maximum Drain Source Voltage (V)	30
Maximum Gate Source Voltage (V)	±20
Maximum Continuous Drain Current (A)	5
Maximum Drain Source Resistance (mOhm)	31@10V
Typical Gate Charge @ Vgs (nC)	5.2@10V
Typical Gate Charge @ 10V (nC)	5.2
Typical Input Capacitance @ Vds (pF)	255@15V
Maximum Power Dissipation (mW)	1250
Typical Fall Time (ns)	3.5
Typical Rise Time (ns)	2.5
Typical Turn-Off Delay Time (ns)	14.5
Typical Turn-On Delay Time (ns)	4.5
Operating Temperature-Min	-55
Operating Temperature-Max	150
Packing Method	Tape and Reel
Original Package	TSOP
Pin Count	6
Standard Package Method	SOP
Terminal Form	Surface Mount
Package Height	1.1
Package Length	2.9
Package Width	1.6
