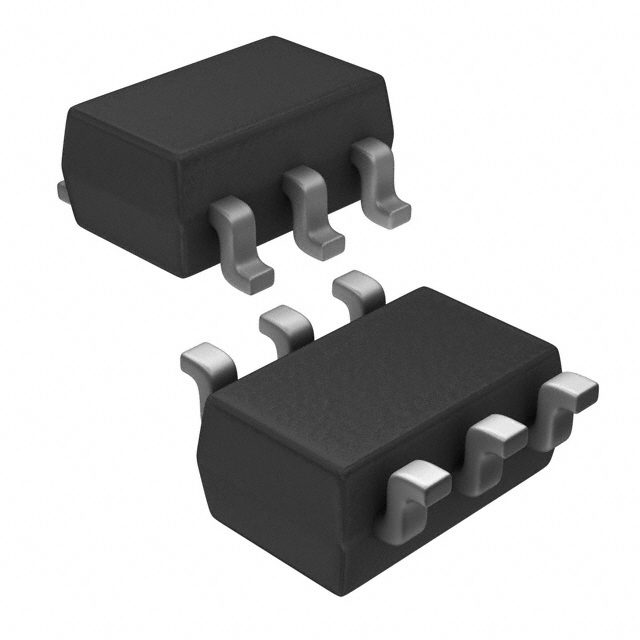

AO6409

SKU: 123892

Manufacturer: Alpha and Omega Semiconductor

Trans MOSFET P-CH 20V 5.5A 6-Pin TSOP T/R

24050 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Obsolete
HTS	8541.29.00.95
Automotive	Unknown
Product Category	Power MOSFET
Configuration	Single Quad Drain
Channel Mode	Enhancement
Channel Type	P
Number of Elements per pcs	1
Maximum Drain Source Voltage (V)	20
Maximum Gate Source Voltage (V)	±8
Maximum Continuous Drain Current (A)	5.5
Maximum Drain Source Resistance (mOhm)	41@4.5V
Typical Gate Charge @ Vgs (nC)	9.3@4.5V
Typical Input Capacitance @ Vds (pF)	751@10V
Maximum Power Dissipation (mW)	2100
Typical Fall Time (ns)	29
Typical Rise Time (ns)	9
Typical Turn-Off Delay Time (ns)	19
Typical Turn-On Delay Time (ns)	13
Operating Temperature-Min	-55
Operating Temperature-Max	150
Packing Method	Tape and Reel
Original Package	TSOP
Pin Count	6
Standard Package Method	SOP
Terminal Form	Surface Mount
Package Height	1.1
Package Length	2.9
Package Width	1.6
