YC248-JR-0775RL

SKU: 66768

Manufacturer: Yageo

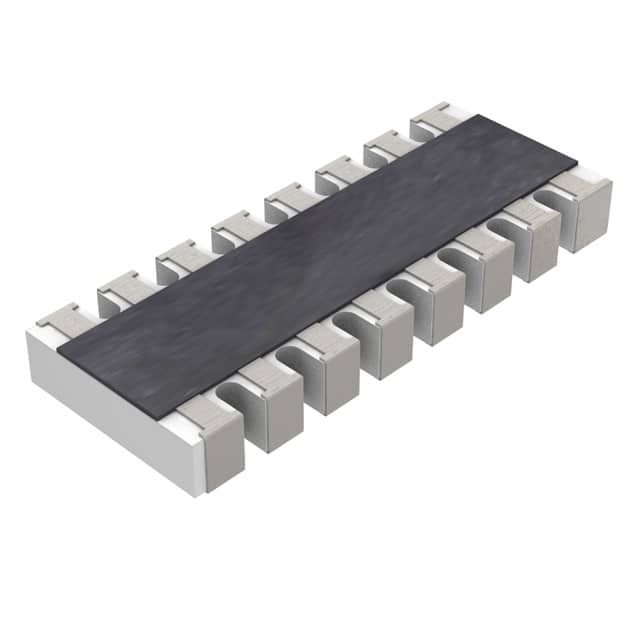

Res Thick Film Array 75 Ohm 5% ±200ppm/°C ISOL Epoxy 16-Pin 1606(8 X 0602) Convex SMD Automotive T/R

3570 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant with Exemption
ECCN (US)	EAR99
Part Status	Active
Automotive	Yes
PPAP	Yes
Type	Array
Number of Resistors	8
Resistance Value (Ohm)	75
Tolerance	5%
Voltage Rating-Max (V)	50
Power Rating per Resistor (W)	0.063 (1/16)
Technology	Thick Film
Operating Temperature-Min	-55
Operating Temperature-Max	155
Temperature Coefficient (ppm/°C)	±200
Temperature Range @ Derated Power (°C)	70 to 155
Circuit Designator	ISOL
Special Features	High Reliability
Case Style	Epoxy
Case Size	1606
Case Size per Element	0602
Terminal Form	Convex
Number of Terminals	16
Terminal Pitch (mm)	0.5
Packing Method	Tape and Reel
Package Type	SMD
Package Shape	Rectangular
Case Code - in	1606(8 X 0602)
Length (mm)	4
Depth (mm)	1.6
Height (mm)	0.45
