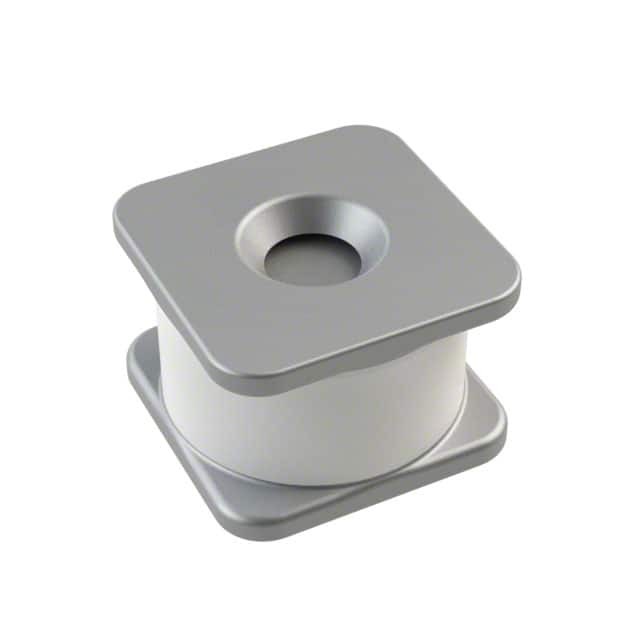

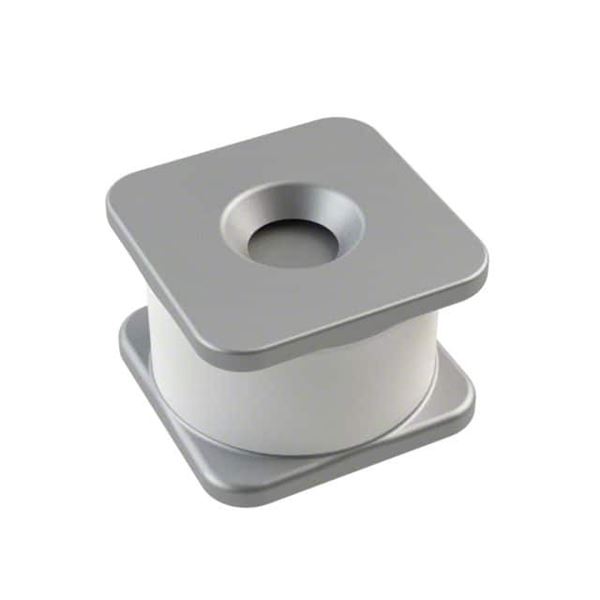

2RL090M-6

SKU: 8085

Manufacturer: Yageo

Gas Discharge Tubes 90VDC 5kADC 5AAC 1pF Solder Pad SMD

2910 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

ECCN (US)	EAR99
Part Status	Active
Automotive	No
PPAP	No
DC Sparkover Voltage Tolerance	±20%
Maximum Impulse Sparkover Voltage @ 100V/s (V)	700
Maximum Impulse Sparkover Voltage @ 1KV/s (V)	700
Typical DC Sparkover Voltage @ 100V/s (V)	90
Typical Impulse Discharge Current @ 8/20us @ 10Times (kA)	5
Typical AC Discharge Current @ 1s @ <= 10Times (A)	5
Minimum Insulation Resistance @ 100V (GOhm)	1
Maximum Capacitance @ 1MHz (pF)	1
Typical Impulse Life @ 10/1000us (Times)	500
Number of Electrodes	2
Terminal Form	Solder Pad
Number of Terminals	2
Operating Temperature-Min	-40
Packing Method	Tape and Reel
Operating Temperature-Max	85
Length (mm)	4.5
Depth (mm)	6.2
Height (mm)	6.2
Failsafe Protection	Yes
