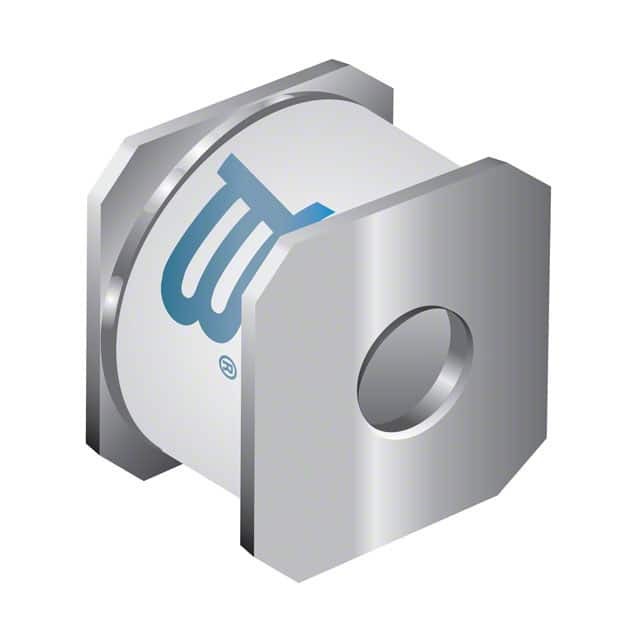

2055-35-SM-RPLF

SKU: 6949

Manufacturer: Bourns

Gas Discharge Tubes 350VDC 5kADC 2.5AAC 0.6pF Solder Pad SMD

24000 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
Automotive	No
PPAP	No
DC Sparkover Voltage Tolerance	±20%
Maximum Impulse Sparkover Voltage @ 100V/s (V)	600
Maximum DC Holdover Voltage (V)	150@150ms
Maximum Impulse Sparkover Voltage @ 1KV/s (V)	750
Typical DC Sparkover Voltage @ 100V/s (V)	350
Typical Impulse Discharge Current @ 8/20us @ 10Times (kA)	5
Typical AC Discharge Current @ 1s @ <= 10Times (A)	2.5
Minimum Insulation Resistance @ 100V (GOhm)	10
Maximum Capacitance @ 1MHz (pF)	0.6
Typical Impulse Life @ 10/1000us (Times)	300
Number of Electrodes	2
Terminal Form	Solder Pad
Number of Terminals	2
Operating Temperature-Min	-30
Packing Method	Tape and Reel
Operating Temperature-Max	85
Length (mm)	4.2
Depth (mm)	6.2
Height (mm)	6.2
Failsafe Protection	No
