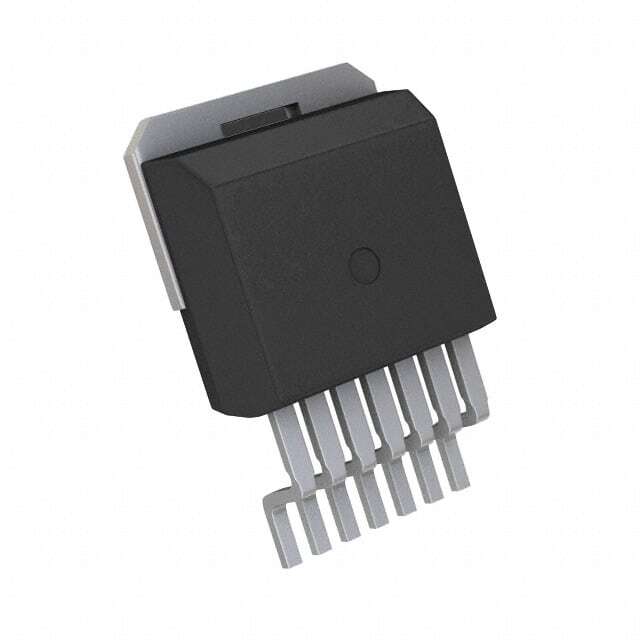

C3M0120090J

SKU: 60804

Manufacturer: Wolfspeed

Trans MOSFET N-CH SiC 900V 22A Automotive 8-Pin(7+Tab) D2PAK

1910 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant with Exemption
ECCN (US)	EAR99
Part Status	Active
HTS	8541.29.00.95
SVHC	Yes
SVHC Exceeds Threshold	Yes
Automotive	Unknown
PPAP	Unknown
Product Category	Power MOSFET
Body Material	SiC
Configuration	Single Quint Source
Process Technology	C3M
Channel Mode	Enhancement
Channel Type	N
Number of Elements per pcs	1
Maximum Drain Source Voltage (V)	900
Maximum Gate Source Voltage (V)	18
Maximum Gate Threshold Voltage (V)	3.5
Maximum Continuous Drain Current (A)	22
Maximum Gate Source Leakage Current (nA)	250
Maximum IDSS (uA)	100
Maximum Drain Source Resistance (mOhm)	155@15V
Typical Gate Charge @ Vgs (nC)	17.3@15V
Typical Input Capacitance @ Vds (pF)	350@600V
Maximum Power Dissipation (mW)	83000
Typical Fall Time (ns)	5
Typical Rise Time (ns)	9
Typical Turn-Off Delay Time (ns)	15
Typical Turn-On Delay Time (ns)	12.5
Operating Temperature-Min	-55
Operating Temperature-Max	150
Original Package	D2PAK
Pin Count	8
Terminal Form	Surface Mount
Package Height	4.44
Package Length	10.18
Package Width	9.08
PCB changed	7
