BUZ73L

SKU: 46561

Manufacturer: Infineon Technologies AG

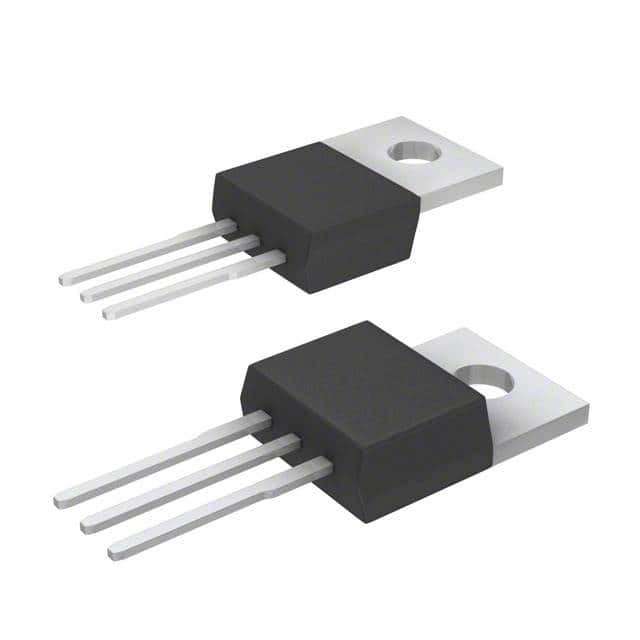

Trans MOSFET N-CH 200V 7A 3-Pin(3+Tab) TO-220

10 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Obsolete
HTS	8541.29.00.95
Automotive	No
PPAP	No
Product Category	Power MOSFET
Process Technology	SIPMOS
Configuration	Single
Channel Mode	Enhancement
Channel Type	N
Number of Elements per pcs	1
Maximum Drain Source Voltage (V)	200
Maximum Gate Source Voltage (V)	±20
Maximum Continuous Drain Current (A)	7
Maximum Drain Source Resistance (mOhm)	400@5V
Typical Input Capacitance @ Vds (pF)	630@25V
Maximum Power Dissipation (mW)	40000
Typical Fall Time (ns)	40
Typical Rise Time (ns)	60
Typical Turn-Off Delay Time (ns)	100
Typical Turn-On Delay Time (ns)	15
Operating Temperature-Min	-55
Operating Temperature-Max	150
Original Package	TO-220
Pin Count	3
Terminal Form	Through Hole
Package Height	9.25
Package Length	10
Package Width	4.4
PCB changed	3
