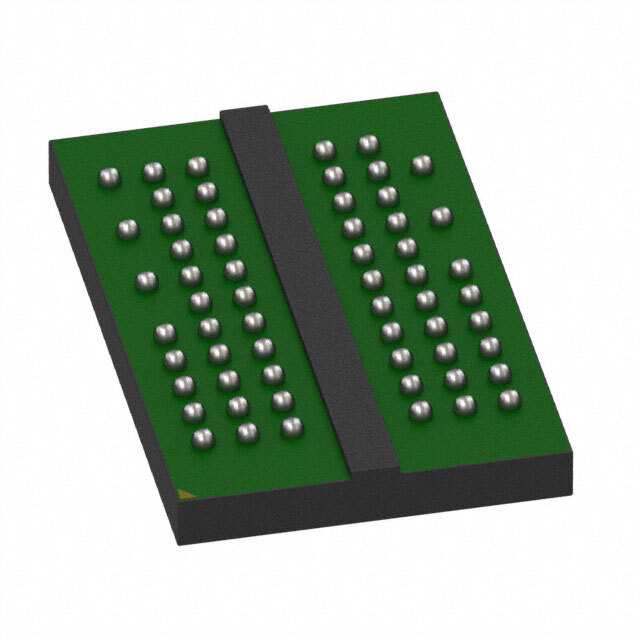

W9751G8KB-25

SKU: 144544

Manufacturer: Winbond Electronics

DRAM Chip DDR2 SDRAM 512Mbit 64Mx8 1.8V 60-Pin WBGA

1860 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Obsolete
HTS	8542.32.00.24
Automotive	No
PPAP	No
DRAM Type	DDR2 SDRAM
Chip Density (bit)	512M
Organization	64Mx8
Number of Internal Banks	4
Number of Words per Bank	16M
Number of Bits/Word (bit)	8
Data Bus Width (bit)	8
Maximum Clock Rate (MHz)	800
Maximum Access Time (ns)	0.4
Address Bus Width (bit)	16
Interface Type	SSTL_18
Operating Supply Voltage-Min (V)	1.7
Typical Operating Supply Voltage (V)	1.8
Operating Supply Voltage-Max (V)	1.9
Operating Current (mA)	110
Operating Temperature-Min	0
Operating Temperature-Max	85
Number of I/O Lines (bit)	8
Original Package	WBGA
Pin Count	60
Terminal Form	Surface Mount
Package Height	0.8(Max)
Package Length	12.5
Package Width	8
