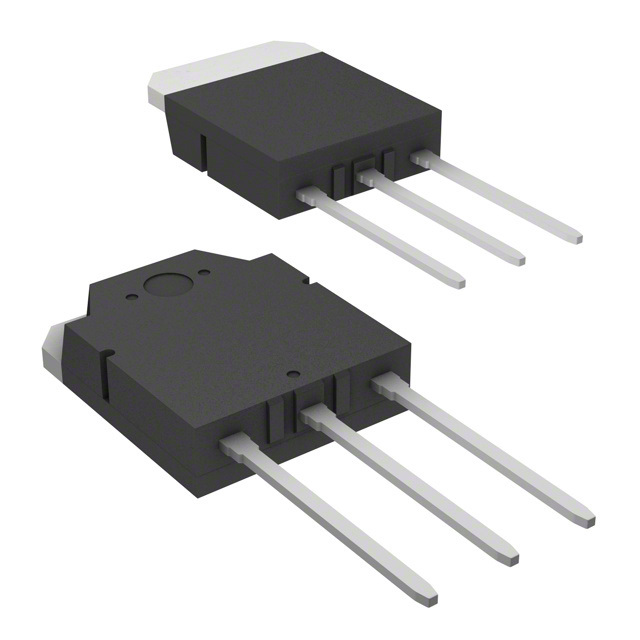

BTA440Z-800BTQ

SKU: 93696

Manufacturer: WeEn Semiconductors

TRIAC Diode 800V 40A(RMS) 400A 3-Pin(3+Tab) TO-3P Rail

2890 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant with Exemption
ECCN (US)	EAR99
Part Status	Active
HTS	8541.30.00.80
Automotive	No
PPAP	No
Maximum Rate of Rise of Off-State Voltage (V/us)	1000(Min)
Maximum Rate of Rise of On-State Current (A/us)	150
Maximum Gate Trigger Voltage (V)	1.3
Maximum Gate Trigger Current (mA)	50
Surge Current Rating (A)	400
Maximum Holding Current (mA)	80
Repetitive Peak Reverse Voltage (V)	800
Peak On-State Voltage (V)	1.5@56.6A
Repetitive Peak Forward Blocking Voltage (V)	800
RMS On-State Current (A)	40
Repetitive Peak Off-State Current (mA)	2
Maximum Latching Current (mA)	160
Peak Gate Power Dissipation (W)	40
Average Gate Power Dissipation (W)	1
Circuit Fusing Consideration (A²S)	800
AC Switch	No
Operating Temperature-Min	-40
Operating Temperature-Max	150
Packing Method	Rail
Original Package	TO-3P
Pin Count	3
Terminal Form	Through Hole
Package Height	12.85(Max)
Package Length	15.5(Max)
Package Width	4.95(Max)
PCB changed	3
