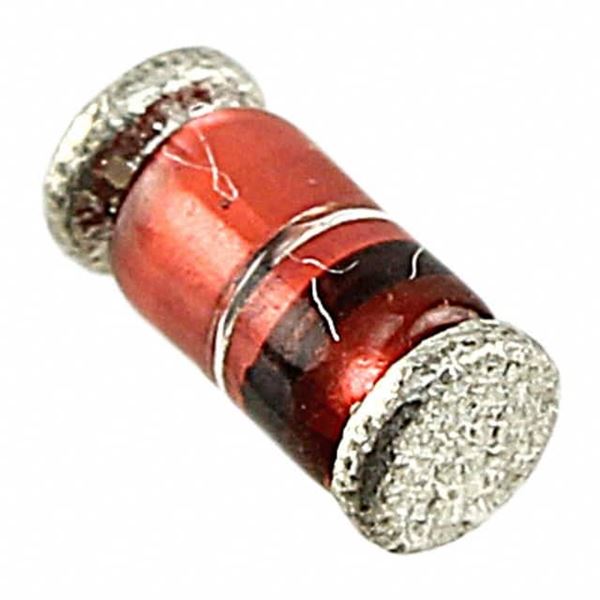

ZM4764A-GS08

SKU: 144572

Manufacturer: Vishay

Zener Diode Single 100V 5% 350Ohm 1000mW Automotive 2-Pin MELF T/R

1720 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant with Exemption
ECCN (US)	EAR99
Part Status	LTB
HTS	8541.10.00.50
Automotive	Yes
PPAP	Unknown
Type	Voltage Regulator
Configuration	Single
Nominal Zener Voltage (V)	100
Zener Voltage Tolerance	5%
Maximum Power Dissipation (mW)	1000
Test Current (mA)	2.5
Maximum Reverse Leakage Current (uA)	5
Maximum Regulator Current (mA)	9
Maximum Zener Impedance (Ohm)	350
Maximum Power Dissipation @ 25C (mW)	1000
Operating Temperature-Min	-65
Operating Temperature-Max	175
Supplier Temperature Grade	Automotive
Packing Method	Tape and Reel
Product Weight (g)	0.135
Original Package	MELF
Pin Count	2
Standard Package Method	MELF
Diameter	2.6(Max)
Terminal Form	Surface Mount
Package Length	5.2(Max)
