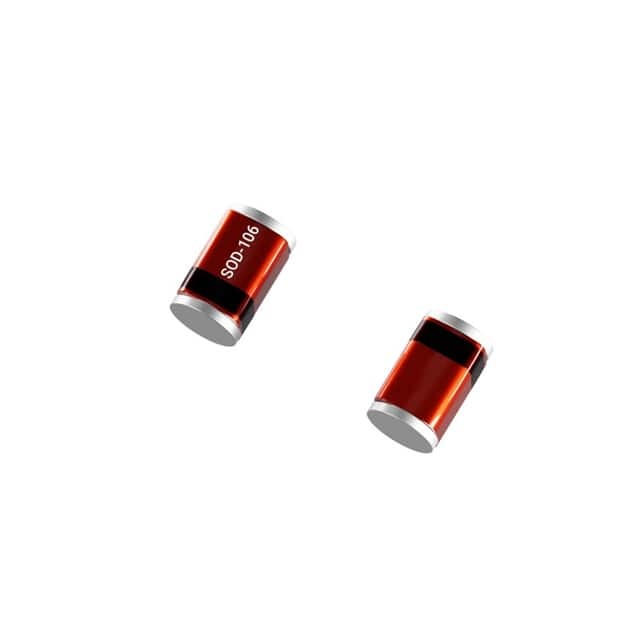

ZMC39

SKU: 157140

Manufacturer: Diotec Semiconductor AG

Zener Diode Single 39V 5% 90Ohm 500mW 2-Pin Quadro Micro-MELF T/R

1250 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant with Exemption
ECCN (US)	EAR99
Part Status	Active
HTS	8541.10.00.50
Automotive	No
PPAP	No
Type	Voltage Regulator
Configuration	Single
Nominal Zener Voltage (V)	39
Zener Voltage Tolerance	5%
Maximum Power Dissipation (mW)	500
Test Current (mA)	5
Maximum Reverse Leakage Current (uA)	0.1
Maximum Regulator Current (mA)	12
Maximum Zener Impedance (Ohm)	90
Maximum Power Dissipation @ 25C (mW)	500
Operating Temperature-Min	-50
Operating Temperature-Max	175
Supplier Temperature Grade	Commercial
Typical Voltage Temperature Coefficient	0.08%/°C
Maximum Zener Voltage (V)	41
Minimum Zener Voltage (V)	37
Packing Method	Tape and Reel
Original Package	Quadro Micro-MELF
Pin Count	2
Terminal Form	Surface Mount
Package Height	1.25
Package Length	2
Package Width	1.25
