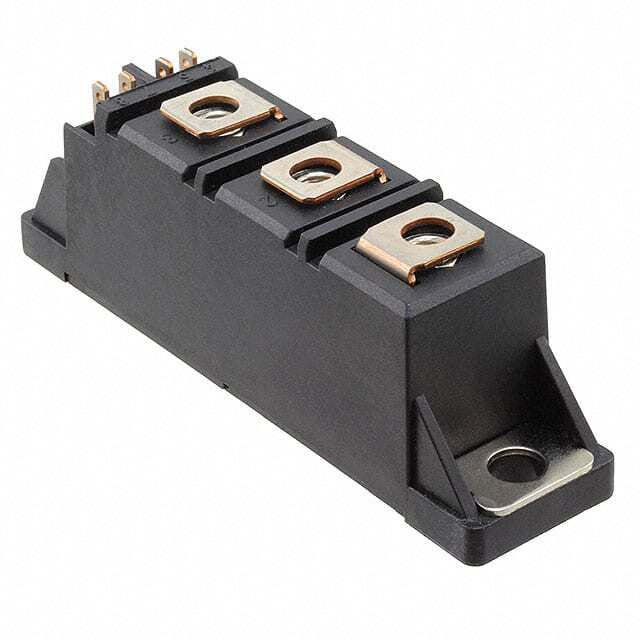

VSKT56/12

SKU: 52682

Manufacturer: Vishay

SCR Module Diode 1200V 135A(RMS) 1256A 7-Pin ADD-A-PAK

1710 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
Automotive	No
PPAP	No
Number of SCRs/Diodes	1SCRs/1Diodes
Maximum Rate of Rise of Off-State Voltage (V/us)	1000
Maximum Rate of Rise of On-State Current (A/us)	150
Maximum Gate Trigger Voltage (V)	2.5
Maximum Gate Trigger Current (mA)	150
Surge Current Rating (A)	1256
Maximum Holding Current (mA)	200
Repetitive Peak Reverse Voltage (V)	1200
Maximum Gate Peak Inverse Voltage (V)	10
Peak On-State Voltage (V)	1.7
Repetitive Peak Forward Blocking Voltage (V)	1200
Rated Average On-State Current (A)	60
RMS On-State Current (A)	135
Repetitive Peak Off-State Current (mA)	15
Maximum Latching Current (mA)	400
Circuit Fusing Consideration (A²S)	7200
Phase Control	No
Operating Temperature-Min	-40
Operating Temperature-Max	125
Original Package	ADD-A-PAK
Pin Count	7
Terminal Form	Screw
Package Height	30
Package Length	92
Package Width	22.6
