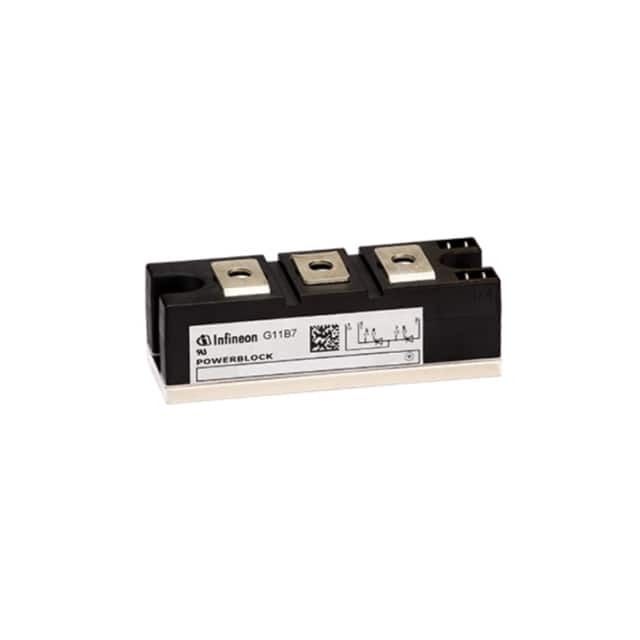

TT142N16KOF

SKU: 31217

Manufacturer: Infineon Technologies AG

SCR Module Diode 1600V 230A(RMS) 4800A 7-Pin PB34-1 Tray

1840 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
Automotive	No
PPAP	No
Maximum Rate of Rise of Off-State Voltage (V/us)	1000
Maximum Rate of Rise of On-State Current (A/us)	150
Maximum Gate Trigger Voltage (V)	2
Maximum Gate Trigger Current (mA)	150
Surge Current Rating (A)	4800
Maximum Holding Current (mA)	200
Repetitive Peak Reverse Voltage (V)	1600
Peak On-State Voltage (V)	1.56@500A
Repetitive Peak Forward Blocking Voltage (V)	1600
Rated Average On-State Current (A)	142
RMS On-State Current (A)	230
Repetitive Peak Off-State Current (mA)	30
Phase Control	Yes
Operating Temperature-Min	-40
Operating Temperature-Max	125
Packing Method	Tray
Original Package	PB34-1
Pin Count	7
Standard Package Method	PB34
Terminal Form	Screw
Package Height	30
Package Length	94
Package Width	34
