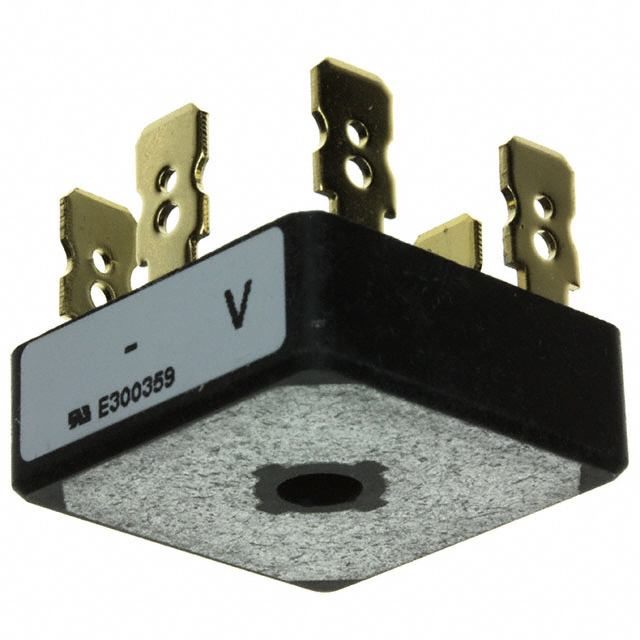

VS-26MT60

SKU: 38428

Manufacturer: Vishay

Rectifier Bridge Diode Single 600V 25A 5-Pin Case D-63

2620 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8541.10.00.80
Automotive	No
PPAP	No
Bridge Type	Three Phase
Configuration	Single
Peak Reverse Repetitive Voltage (V)	600
Peak Average Forward Current (A)	25
Peak Non-Repetitive Forward Surge Current (A)	375
Peak Forward Voltage (V)	1.26@40A
Peak Reverse Current (uA)	100
Operating Temperature-Min	-55
Operating Temperature-Max	150
Original Package	Case D-63
Pin Count	5
Terminal Form	Screw
Package Height	10
Package Length	28.5
Package Width	28.5
