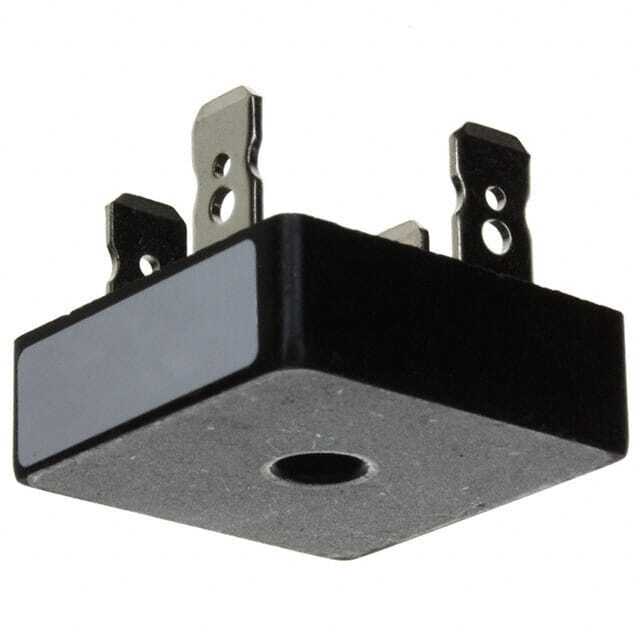

VS-26MB10A

SKU: 86200

Manufacturer: Vishay

Rectifier Bridge Diode Single 100V 25A 4-Pin Case D-34

3180 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Unconfirmed
HTS	8541.10.00.80
Automotive	No
PPAP	No
Bridge Type	Single Phase
Configuration	Single
Peak Reverse Repetitive Voltage (V)	100
Peak Average Forward Current (A)	25
Peak Non-Repetitive Forward Surge Current (A)	420
Peak Forward Voltage (V)	1.25@40A
Peak Reverse Current (uA)	10
Operating Temperature-Min	-55
Operating Temperature-Max	150
Original Package	Case D-34
Pin Count	4
Terminal Form	Screw
Package Height	9.8
Package Length	28.5
Package Width	28.5
