VLIN1626-02GHE3-08

SKU: 79035

Manufacturer: Vishay

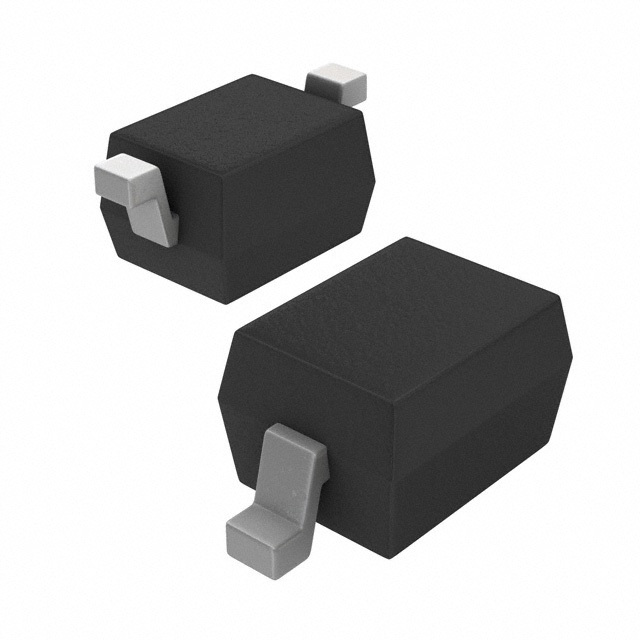

ESD Suppressor Diode TVS Uni-Dir 26.5V Automotive 2-Pin SOD-323 T/R

3160 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
Automotive	Yes
PPAP	Unknown
Type	TVS
Configuration	Single
Direction Type	Uni-Directional
Number of Elements per pcs	1
Maximum Working Voltage (V)	26.5
Minimum Breakdown Voltage (V)	28
Maximum Breakdown Voltage (V)	32
Maximum Clamping Voltage (V)	50
Maximum Peak Pulse Current (A)	6
Maximum Leakage Current (uA)	0.05
Test Current (mA)	1
Peak Pulse Power Dissipation (W)	200
Capacitance Value (pF)	18
Operating Temperature-Min	-55
Operating Temperature-Max	150
Supplier Temperature Grade	Automotive
Packing Method	Tape and Reel
Original Package	SOD-323
Pin Count	2
Standard Package Method	SOD
Terminal Form	Surface Mount
Package Height	1.05(Max)
Package Length	1.95(Max)
Package Width	1.5(Max)
