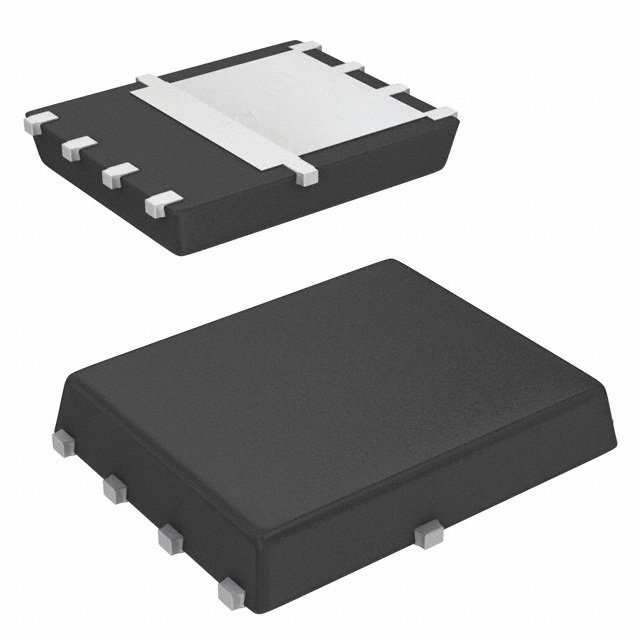

SIR172DP-T1-GE3

SKU: 99204

Manufacturer: Vishay

Trans MOSFET N-CH 30V 20A 8-Pin PowerPAK SO EP T/R

80560 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Obsolete
HTS	8541.29.00.95
Automotive	No
PPAP	No
Product Category	Power MOSFET
Configuration	Single Quad Drain Triple Source
Process Technology	TrenchFET
Channel Mode	Enhancement
Channel Type	N
Number of Elements per pcs	1
Maximum Drain Source Voltage (V)	30
Maximum Gate Source Voltage (V)	±20
Maximum Gate Threshold Voltage (V)	2.5
Maximum Continuous Drain Current (A)	20
Maximum Gate Source Leakage Current (nA)	100
Maximum IDSS (uA)	1
Maximum Drain Source Resistance (mOhm)	8.9@10V
Typical Gate Charge @ Vgs (nC)	19.5@10V
Typical Gate Charge @ 10V (nC)	19.5
Typical Gate to Drain Charge (nC)	3.7
Typical Gate to Source Charge (nC)	3.7
Typical Reverse Recovery Charge (nC)	5
Typical Input Capacitance @ Vds (pF)	997@15V
Typical Output Capacitance (pF)	195
Maximum Power Dissipation (mW)	3900
Typical Fall Time (ns)	13
Typical Rise Time (ns)	19
Typical Turn-Off Delay Time (ns)	19
Typical Turn-On Delay Time (ns)	19
Operating Temperature-Min	-55
Operating Temperature-Max	150
Packing Method	Tape and Reel
Original Package	PowerPAK SO EP
Pin Count	8
Terminal Form	Surface Mount
Package Height	1.07(Max)
Package Length	4.9
Package Width	5.89
PCB changed	8
