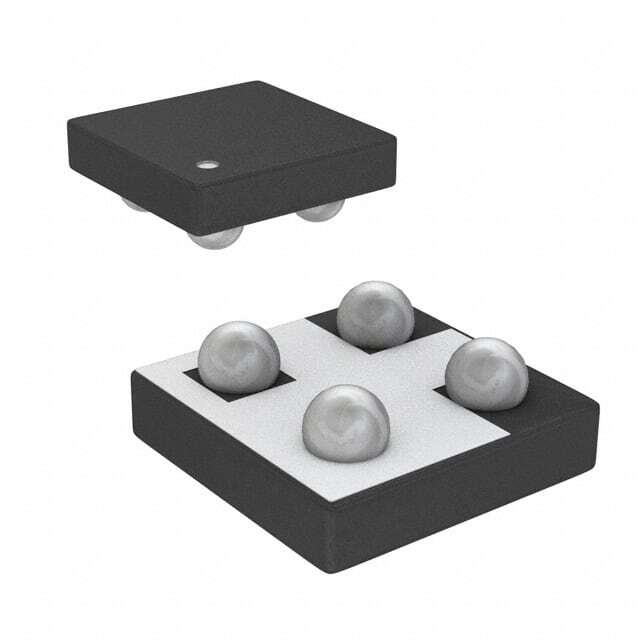

SI8415DB-T1-E1

SKU: 99190

Manufacturer: Vishay

Trans MOSFET P-CH 12V 5.3A 4-Pin Micro Foot T/R

14460 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Obsolete
HTS	8541.29.00.95
Automotive	No
PPAP	No
Product Category	Power MOSFET
Configuration	Single Dual Drain
Process Technology	TrenchFET
Channel Mode	Enhancement
Channel Type	P
Number of Elements per pcs	1
Maximum Drain Source Voltage (V)	12
Maximum Gate Source Voltage (V)	±8
Maximum Gate Threshold Voltage (V)	1
Maximum Continuous Drain Current (A)	5.3
Maximum Gate Source Leakage Current (nA)	100
Maximum IDSS (uA)	1
Maximum Drain Source Resistance (mOhm)	37@4.5V
Typical Gate Charge @ Vgs (nC)	19@4.5V
Maximum Power Dissipation (mW)	1470
Typical Fall Time (ns)	115
Typical Rise Time (ns)	32
Typical Turn-Off Delay Time (ns)	180
Typical Turn-On Delay Time (ns)	15
Operating Temperature-Min	-55
Operating Temperature-Max	150
Packing Method	Tape and Reel
Original Package	Micro Foot
Pin Count	4
Standard Package Method	BGA
Terminal Form	Surface Mount
Package Height	0.36(Max)
Package Length	1.6(Max)
Package Width	1.6(Max)
