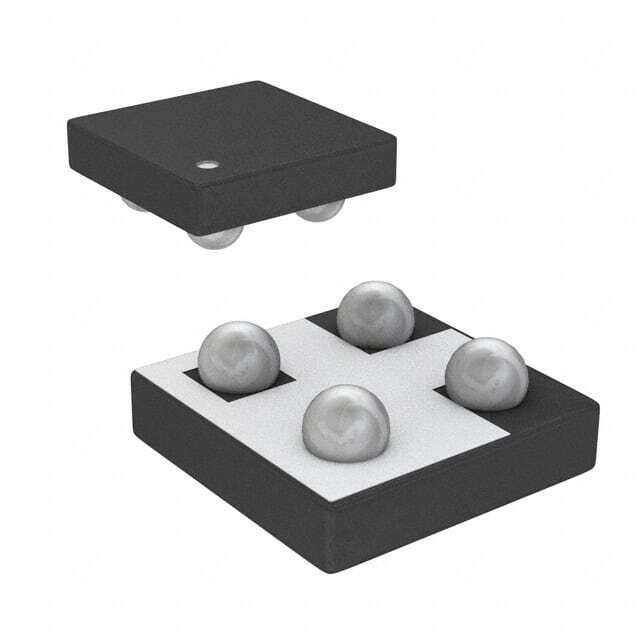

SI8401DB-T1-E3

SKU: 99189

Manufacturer: Vishay

Trans MOSFET P-CH Si 20V 3.6A 4-Pin Micro Foot T/R

57740 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	NRND
HTS	8541.10.00.80
Automotive	No
PPAP	No
Product Category	Power MOSFET
Body Material	Si
Configuration	Single Dual Drain
Channel Mode	Enhancement
Channel Type	P
Number of Elements per pcs	1
Maximum Drain Source Voltage (V)	20
Maximum Gate Source Voltage (V)	±12
Maximum Continuous Drain Current (A)	3.6
Maximum Drain Source Resistance (mOhm)	65@4.5V
Typical Gate Charge @ Vgs (nC)	11@4.5V
Maximum Power Dissipation (mW)	2770
Typical Fall Time (ns)	60
Typical Rise Time (ns)	28
Typical Turn-Off Delay Time (ns)	88
Typical Turn-On Delay Time (ns)	17
Operating Temperature-Min	-55
Operating Temperature-Max	150
Packing Method	Tape and Reel
Original Package	Micro Foot
Pin Count	4
Standard Package Method	BGA
Terminal Form	Surface Mount
Package Height	0.36(Max)
Package Length	1.6(Max)
Package Width	1.6(Max)
