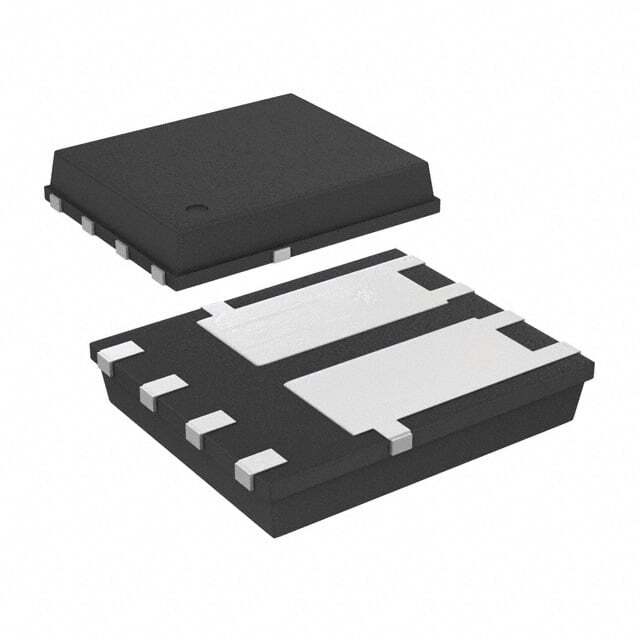

SI7997DP-T1-GE3

SKU: 49849

Manufacturer: Vishay

Trans MOSFET P-CH 30V 20.8A 8-Pin PowerPAK SO EP T/R

6090 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant with Exemption
ECCN (US)	EAR99
Part Status	Active
HTS	8541.29.00.95
SVHC	Yes
SVHC Exceeds Threshold	Yes
Automotive	No
PPAP	No
Product Category	Power MOSFET
Configuration	Dual Dual Drain
Process Technology	TrenchFET
Channel Mode	Enhancement
Channel Type	P
Number of Elements per pcs	2
Maximum Drain Source Voltage (V)	30
Maximum Gate Source Voltage (V)	±20
Maximum Continuous Drain Current (A)	20.8
Maximum Drain Source Resistance (mOhm)	5.5@10V
Typical Gate Charge @ Vgs (nC)	106@10V
Typical Gate Charge @ 10V (nC)	106
Typical Input Capacitance @ Vds (pF)	6200@15V
Maximum Power Dissipation (mW)	3500
Typical Fall Time (ns)	40
Typical Rise Time (ns)	10
Typical Turn-Off Delay Time (ns)	80
Typical Turn-On Delay Time (ns)	15
Operating Temperature-Min	-55
Operating Temperature-Max	150
Packing Method	Tape and Reel
Original Package	PowerPAK SO EP
Pin Count	8
Terminal Form	Surface Mount
Package Height	1.07(Max)
Package Length	4.9
Package Width	5.89
PCB changed	8
