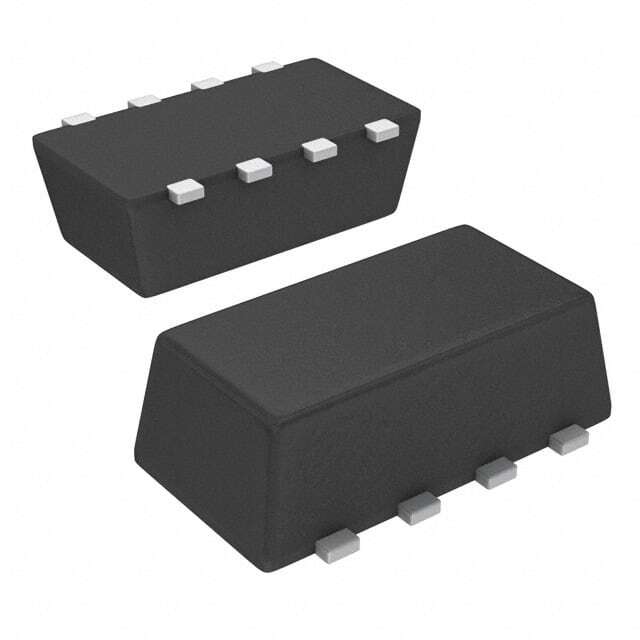

SI5913DC-T1-GE3

SKU: 87489

Manufacturer: Vishay

Trans MOSFET P-CH 20V 4A 8-Pin Chip FET T/R

35610 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Obsolete
Automotive	No
PPAP	No
Product Category	Power MOSFET
Configuration	Single Dual Drain
Channel Mode	Enhancement
Channel Type	P
Number of Elements per pcs	1
Maximum Drain Source Voltage (V)	20
Maximum Gate Source Voltage (V)	±12
Maximum Continuous Drain Current (A)	4
Maximum Drain Source Resistance (mOhm)	84@10V
Typical Gate Charge @ Vgs (nC)	8@10V
Typical Gate Charge @ 10V (nC)	8
Typical Input Capacitance @ Vds (pF)	330@10V
Maximum Power Dissipation (mW)	1300
Typical Fall Time (ns)	10
Typical Rise Time (ns)	40
Typical Turn-Off Delay Time (ns)	18
Typical Turn-On Delay Time (ns)	18
Operating Temperature-Min	-55
Operating Temperature-Max	150
Packing Method	Tape and Reel
Original Package	Chip FET
Pin Count	8
Terminal Form	Surface Mount
Package Height	1.1(Max)
Package Length	3.05
Package Width	1.65
PCB changed	8
