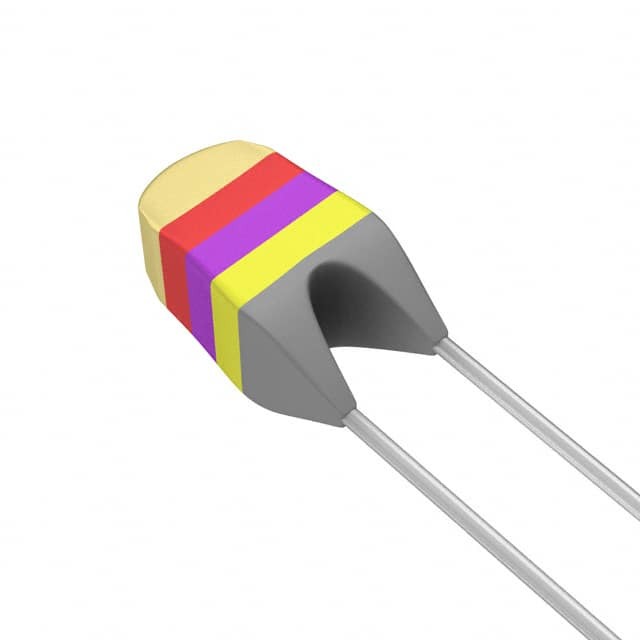

NTCLE100E3472JB0

SKU: 108501

Manufacturer: Vishay

Thermistor NTC 4.7K Ohm 5% 2-Pin Radial 3977K -4.5 to -4 Bulk

4230 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant with Exemption
ECCN (US)	EAR99
Part Status	Active
HTS	8533.40.80.70
Automotive	No
PPAP	No
Type	NTC
Number of Terminals	2
Thermal Coefficient Range	-4.5 to -4
Thermal Coefficient	-4.38%/K
Thermal Time Constant (s)	15
Thermal Time Constant Range (s)	15 to 40
Sensitivity Index (K)	3977
Sensitivity Index Range (K)	3850 to 4100
Accuracy	±0.75%
Operating Temperature-Min	-40
Operating Temperature-Max	125
Resistance @ 25C (Ohm)	4700
Resistance Range @ 25C (Ohm)	1500 to 6000
Percentage of Resistance Tolerance @ 25C (%)	±5
Percentage of Resistance Tolerance Range @ 25C (%)	±5 to ±10
Maximum Power Rating (W)	500m
Application	Temperature Measurement
Terminal Pitch (mm)	2.54
Seated Plane Height (mm)	9(Max)
Packing Method	Bulk
Length (mm)	3.3(Max)
Depth (mm)	3(Max)
Height (mm)	9(Max)
Construction	Radial
