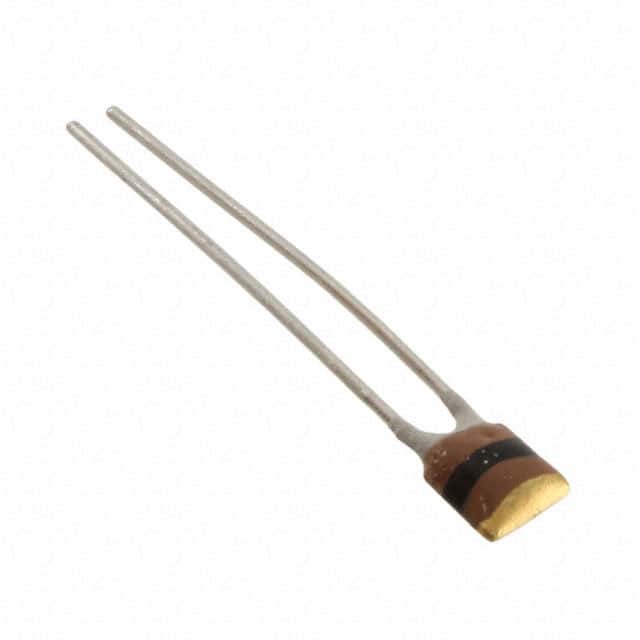

NTCLE100E3104JB0

SKU: 59280

Manufacturer: Vishay

Thermistor NTC 100K Ohm 5% 2-Pin Radial 4190K -5 to -4.5 Bulk

1290 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant with Exemption
ECCN (US)	EAR99
Part Status	Active
HTS	8533.40.80.70
Automotive	No
PPAP	No
Type	NTC
Number of Terminals	2
Thermal Coefficient Range	-5 to -4.5
Thermal Coefficient	-4.57%/K
Thermal Time Constant (s)	15
Thermal Time Constant Range (s)	15 to 40
Sensitivity Index (K)	4190
Sensitivity Index Range (K)	4100 to 4300
Accuracy	±1.5%
Operating Temperature-Min	-40
Operating Temperature-Max	125
Resistance @ 25C (Ohm)	100000
Resistance Range @ 25C (Ohm)	25000 to 120000
Percentage of Resistance Tolerance @ 25C (%)	±5
Percentage of Resistance Tolerance Range @ 25C (%)	±5 to ±10
Maximum Power Rating (W)	500m
Application	Temperature Control
Terminal Pitch (mm)	2.54
Seated Plane Height (mm)	9(Max)
Packing Method	Bulk
Length (mm)	3.3(Max)
Depth (mm)	3(Max)
Height (mm)	9(Max)
Construction	Radial
