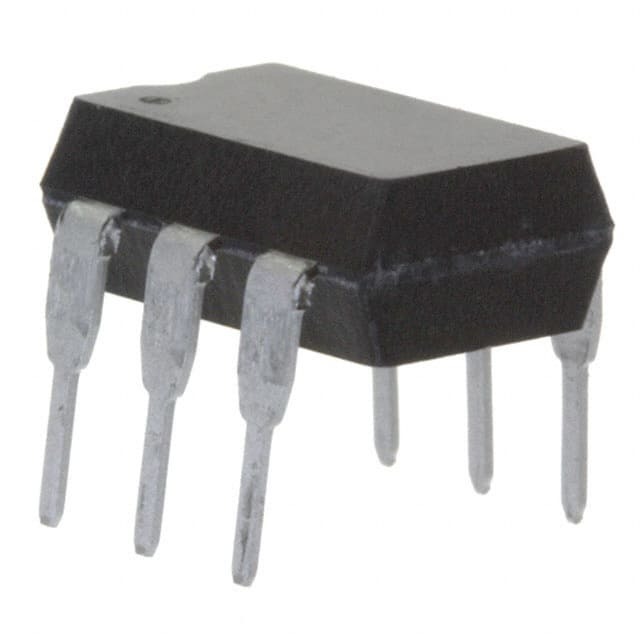

IL250

SKU: 139384

Manufacturer: Vishay

AC-IN 1-CH Transistor With Base DC-OUT 6-Pin PDIP Tube

1260 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8541.40.80.00
Automotive	No
PPAP	No
Output Type	DC
Input Type	AC
Output Device	Transistor With Base
Number of Channels per Chip	1
Minimum Isolation Voltage (Vrms)	4420(Max)
Operating Temperature-Min	-55
Operating Temperature-Max	100
Maximum Forward Voltage (V)	1.5
Collector-Emitter Voltage-Max (V)	30
Standard	CSA
Maximum Collector-Emitter Saturation Voltage (mV)	400
Maximum Power Dissipation (mW)	250
Typical Forward Voltage (V)	1.2
Maximum Forward Current (mA)	60
Packing Method	Tube
Minimum Current Transfer Ratio (%)	50
Current Transfer Ratio Test Current (mA)	10
Standard Package Method	DIP
Pin Count	6
Original Package	PDIP
Terminal Form	Through Hole
Package Height	3.81(Max)
Package Length	8.7(Max)
Package Width	6.5(Max)
PCB changed	6
