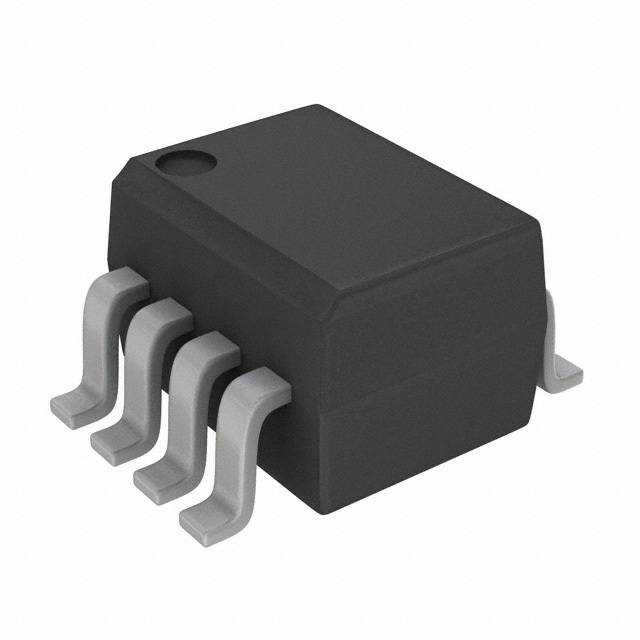

IL206AT

SKU: 54563

Manufacturer: Vishay

Optocoupler DC-IN 1-CH Transistor With Base DC-OUT 8-Pin SOIC N T/R

49430 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8541.40.80.00
Automotive	No
PPAP	No
Output Type	DC
Input Type	DC
Output Device	Transistor With Base
Number of Channels per Chip	1
Minimum Isolation Voltage (Vrms)	4000
Operating Temperature-Min	-55
Operating Temperature-Max	100
Maximum Forward Voltage (V)	1.5
Collector-Emitter Voltage-Max (V)	70
Maximum Current Transfer Ratio (%)	125
Standard	CSA
Maximum Collector Current (mA)	100
Maximum Collector-Emitter Saturation Voltage (mV)	400
Maximum Power Dissipation (mW)	240
Typical Forward Voltage (V)	1.3
Maximum Forward Current (mA)	60
Packing Method	Tape and Reel
Minimum Current Transfer Ratio (%)	63
Current Transfer Ratio Test Current (mA)	10
Standard Package Method	SOP
Pin Count	8
Original Package	SOIC N
Terminal Form	Surface Mount
Package Height	1.55(Max)
Package Length	5(Max)
Package Width	4(Max)
PCB changed	8
