DG405DY

SKU: 25605

Manufacturer: Vishay

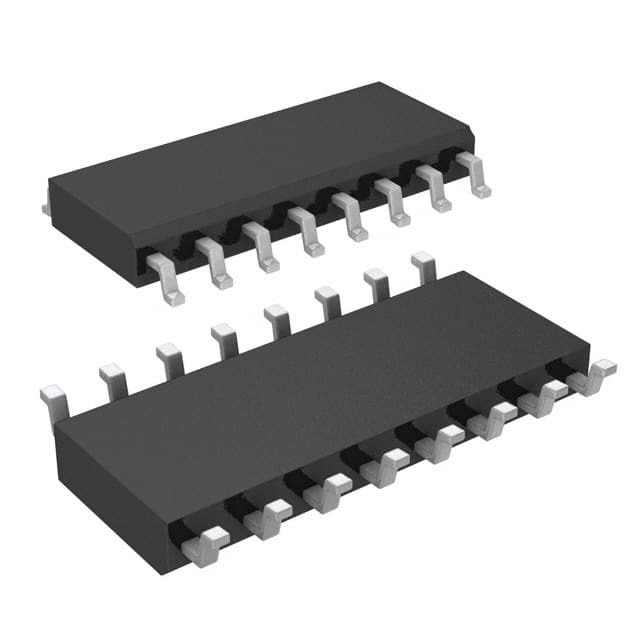

Analog Switch Dual DPST 16-Pin SOIC N

1600 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Not Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.39.00.01
Automotive	No
PPAP	No
Type	Analog Switch
Configuration	Dual DPST
Switch Architecture	DPST
Number of Channels per Chip	2
Number of Inputs per Chip	4
Number of Outputs per Chip	4
Chip Enable Signals	Yes
Polarity	Non-Inverting
Maximum Turn-On Time (ns)	150@±15V
Maximum Turn-Off Time (ns)	100@±15V
Input Signal Type	Single
Output Signal Type	Single
Minimum Single Supply Voltage (V)	13
Typical Single Supply Voltage (V)	15
Maximum Single Supply Voltage (V)	36
Minimum Dual Supply Voltage (V)	±7
Typical Dual Supply Voltage (V)	±9
Maximum Dual Supply Voltage (V)	±22
Typical Supply Current (mA)	±0.00001@±16.5V
Maximum Supply Current (mA)	±0.001@±16.5V
Maximum High Level Output Current (mA)	100
Maximum On Resistance (Ohm)	55@±13.5V
Maximum On Resistance Range (Ohm)	45 to 60
Power Supply Type	Single
Maximum Power Dissipation (mW)	600
Operating Temperature-Min	-40
Operating Temperature-Max	85
Original Package	SOIC N
Pin Count	16
Standard Package Method	SOP
Terminal Form	Surface Mount
Package Height	1.55(Max)
Package Length	10(Max)
Package Width	4(Max)
PCB changed	16
