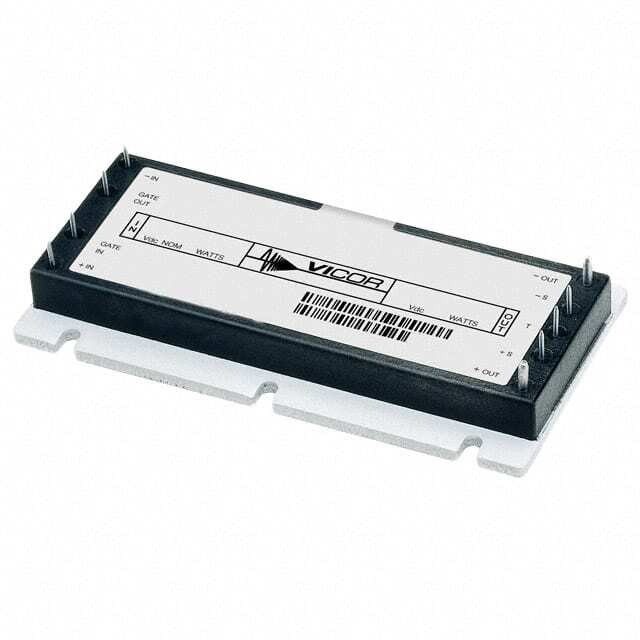

VI-233-CW Vicor

VI-233-CW

SKU: 94834

Manufacturer: Vicor

Module DC-DC 48VIN 1-OUT 24V 100W 9-Pin Brick

Download sample

Request Free Samples

3480 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

QUANTITY

Increments of 0 pcs

Specifications
Contact Us

Products specifications

EU RoHS	Not Compliant
ECCN (US)	EAR99
Part Status	Active
SVHC	Yes
SVHC Exceeds Threshold	Yes
Automotive	No
PPAP	No
Type	Step Down
Isolation	Isolated
Number of Outputs	1
Minimum Input Voltage (V)	42
Typical Input Voltage (V)	48
Maximum Input Voltage (V)	60
Output Voltage (V)	24
Output Power (W)	100
Minimum Isolation Voltage	3000Vrms
Input/Output Type	DC/DC
Switching Frequency (kHz)	2000
Switching Regulator	Yes
Load Regulation	0.5%
Line Regulation	0.5%
Efficiency (%)	90(Typ)
Operating Temperature-Min	-25
Operating Temperature-Max	85
Output Type	Fixed
Original Package	Brick
Pin Count	9
Standard Package Method	Brick
Terminal Form	Through Hole
Package Height	12.7
Package Length	116.8
Package Width	61
PCB changed	9
