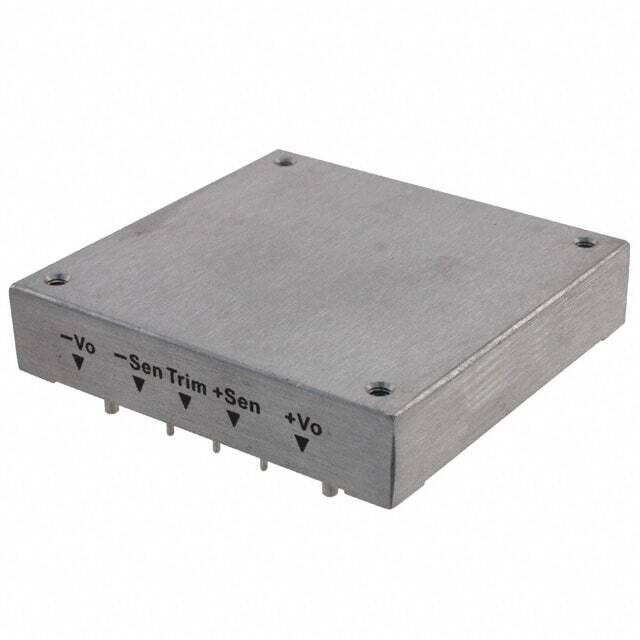

VHB100W-Q24-S24 CUI Inc

VHB100W-Q24-S24

SKU: 135729

Manufacturer: CUI Inc

Module DC-DC 24VIN 1-OUT 24V 4.17A 100W 9-Pin Half-Brick

Request Free Samples

1510 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

QUANTITY

Increments of 0 pcs

Specifications
Contact Us

Products specifications

EU RoHS	Compliant with Exemption
Part Status	Active
HTS	8542.39.00.01
SVHC	Yes
SVHC Exceeds Threshold	Yes
Automotive	No
PPAP	No
Number of Outputs	1
Isolation	Isolated
Minimum Input Voltage (V)	9
Typical Input Voltage (V)	24
Maximum Input Voltage (V)	36
Output Voltage (V)	24
Output Current (A)	4.17
Output Power (W)	100
Minimum Isolation Voltage	1500VDC
Input/Output Type	DC/DC
Switching Frequency (kHz)	250(Typ)
Switching Regulator	Yes
Load Regulation	0.2%
Line Regulation	0.2%
Efficiency (%)	86(Typ)
On/Off Logic	Positive
Operating Temperature-Min	-40
Operating Temperature-Max	100
Supplier Temperature Grade	Extended
Product Weight (g)	95
Output Type	Fixed
Original Package	Half-Brick
Pin Count	9
Standard Package Method	Brick
Terminal Form	Through Hole
Package Height	12.7
Package Length	61
Package Width	57.9
