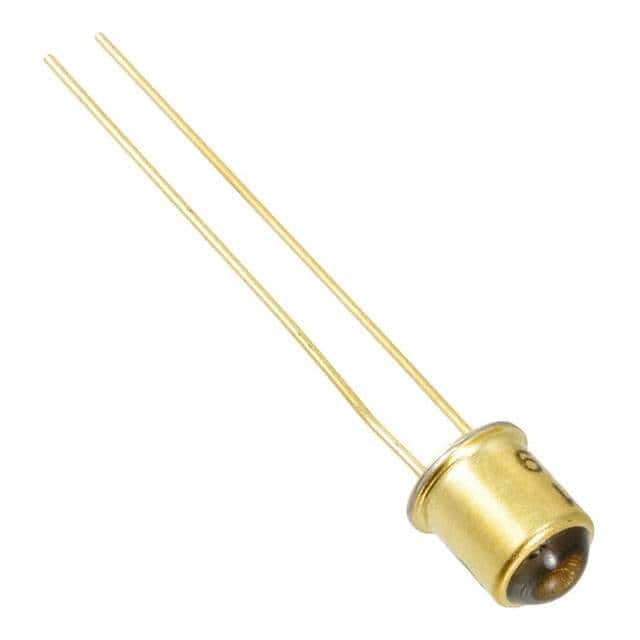

OP133

SKU: 27916

Manufacturer: TT Electronics / Optek Technology

Infrared Emitter 935nm Circular Top Mount 2-Pin TO-46 Bag

2070 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8541.40.20.00
Automotive	No
PPAP	No
Peak Wavelength (nm)	935
LED Body Material	GaAs
Lens Dimensions (mm)	4.65x4.65x1.27
Viewing Angle (°)	18
Maximum Forward Voltage (V)	1.75
Reverse Voltage (V)	2
Maximum Forward Current (mA)	100
Maximum Reverse Current (uA)	100
Test Current (mA)	100
Maximum Power Dissipation (mW)	200
Operating Temperature-Min	-65
Operating Temperature-Max	125
Packing Method	Bag
High Brightness	No
High Power	Yes
Lens Shape Type	Circular
Mounting Orientation	Top Mount
Original Package	TO-46
Pin Count	2
Standard Package Method	TO-206-AB
Diameter	5.59
Terminal Form	Through Hole
Package Height	6.6(Max)
