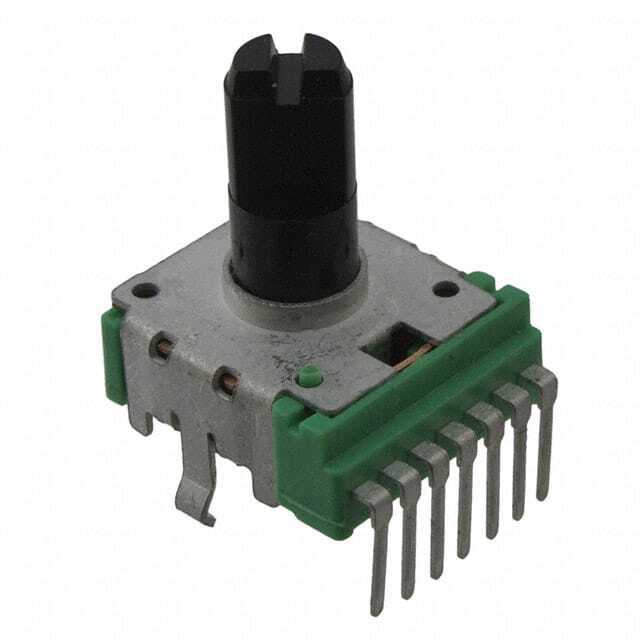

P140KH-F20BR5K

SKU: 59296

Manufacturer: TT Electronics / BI Technologies

Res Conductive Plastic POT 5K Ohm 20% 0.05W(1/20W) 1(Elec)/1(Mech)Turns 6mm (16.1 X 17.7 X 23.5mm) Pin Bracket Mount/Through Hole Box/Tray

910 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8533.40.80.50
Automotive	No
PPAP	No
Type	Potentiometer
Resistance Value (Ohm)	5K
Tolerance	20%
Voltage Rating-Max (V)	50
Power Rating (W)	0.05 (1/20)
Technology	Conductive Plastic
Operating Temperature-Min	-20
Operating Temperature-Max	70
Linear or Logarithmic	Lin
Terminal Form	Pin
Positions of Adjustment	Top
Shaft Diameter (mm)	6
Number of Turns (Turns)	1(Elec)
Number of Elements	2
Electrical Rotation (°)	260
Number of Electrical Turns (Turns)	1
Mechanical Rotation (°)	300
Mechanical Rotational Life (Cycles)	30000
Number of Mechanical Turns (Turns)	1
Packing Method	Box
Length (mm)	16.1
Depth (mm)	17.7
Height (mm)	23.5
