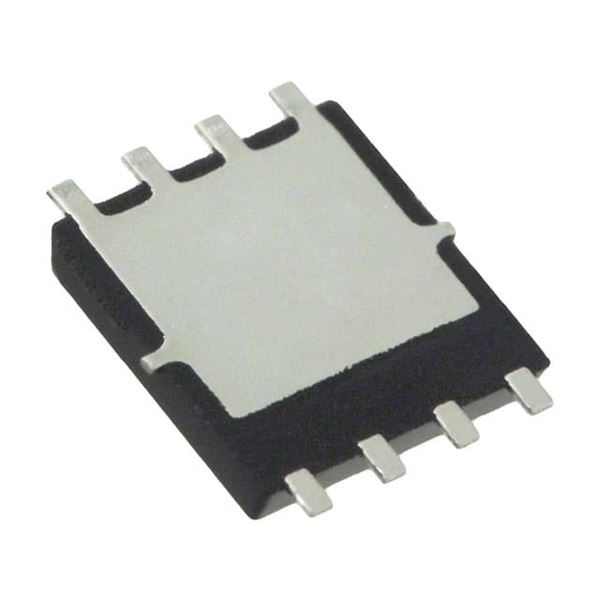

TPN4R303NL

SKU: 156749

Manufacturer: Toshiba

Trans MOSFET N-CH 30V 63A 8-Pin TSON EP Advance T/R

320 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
Automotive	No
PPAP	No
Product Category	Power MOSFET
Configuration	Single Quad Drain Triple Source
Process Technology	U-MOS VIII-H
Channel Mode	Enhancement
Channel Type	N
Number of Elements per pcs	1
Maximum Drain Source Voltage (V)	30
Maximum Gate Source Voltage (V)	±20
Maximum Gate Threshold Voltage (V)	2.3
Maximum Continuous Drain Current (A)	63
Maximum Gate Source Leakage Current (nA)	100
Maximum IDSS (uA)	10
Maximum Drain Source Resistance (mOhm)	4.3@10V
Typical Gate Charge @ Vgs (nC)	14.8@10V
Typical Gate Charge @ 10V (nC)	14.8
Typical Input Capacitance @ Vds (pF)	1110@15V
Maximum Power Dissipation (mW)	34000
Typical Fall Time (ns)	3.5
Typical Rise Time (ns)	4.5
Operating Temperature-Min	-55
Operating Temperature-Max	150
Packing Method	Tape and Reel
Original Package	TSON EP Advance
Pin Count	8
Standard Package Method	SON
Terminal Form	Surface Mount
Package Height	0.85
Package Length	3.1
Package Width	3.1
PCB changed	8
