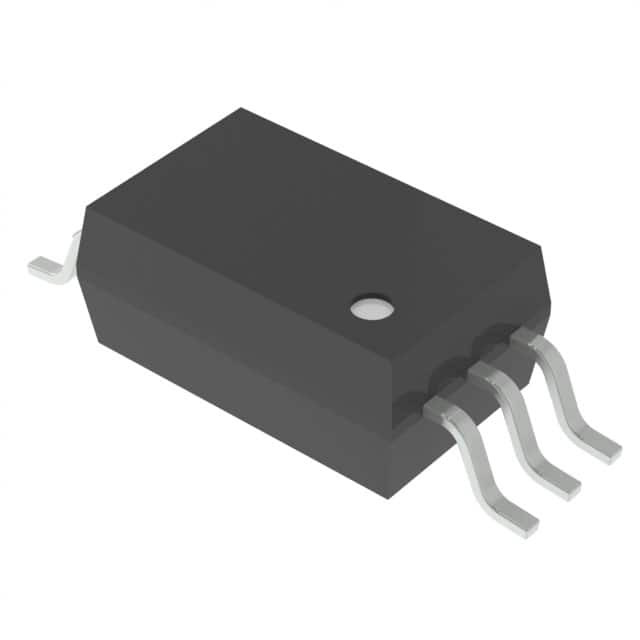

TLP2748

SKU: 151458

Manufacturer: Toshiba

Optocoupler Logic-Out Totem-Pole DC-IN 1-CH 6-Pin SO

2080 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
Automotive	No
PPAP	No
Logic Gate Type	NAND Schmitt
Number of Channels per Chip	1
Polarity	Inverting
Direction Type	Uni-Directional
Minimum Isolation Voltage (Vrms)	5000
Maximum Rise Time (us)	0.03
Typical Rise Time (us)	0.003
Maximum Fall Time (us)	0.03
Typical Fall Time (us)	0.003
Standard	CSA
Input Type	DC
Output Type	Totem-Pole
Maximum Forward Current (mA)	15
Maximum Continuous Output Current (mA)	50
Minimum Forward Voltage (V)	1.35
Typical Forward Voltage (V)	1.55
Maximum Forward Voltage (V)	1.65
Maximum Reverse Voltage (V)	5
Maximum Power Dissipation (mW)	100
Operating Temperature-Min	-40
Operating Temperature-Max	110
Standard Package Method	SOP
Original Package	SO
Pin Count	6
Terminal Form	Surface Mount
Package Height	2.1
Package Length	3.84
Package Width	7.5
PCB changed	6
