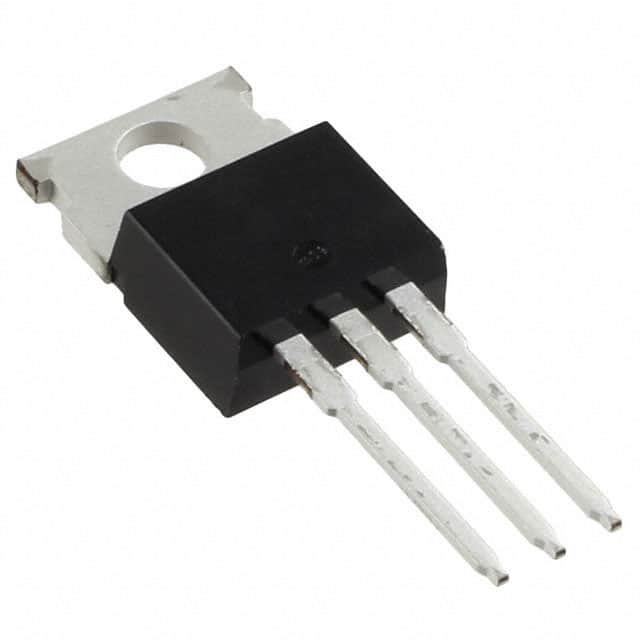

TK72E08N1

SKU: 99833

Manufacturer: Toshiba

Trans MOSFET N-CH Si 80V 157A 3-Pin(3+Tab) TO-220 Magazine

6650 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
Automotive	No
PPAP	No
Product Category	Power MOSFET
Body Material	Si
Configuration	Single
Process Technology	U-MOS VIII-H
Channel Mode	Enhancement
Channel Type	N
Number of Elements per pcs	1
Maximum Drain Source Voltage (V)	80
Maximum Gate Source Voltage (V)	±20
Maximum Gate Threshold Voltage (V)	4
Maximum Continuous Drain Current (A)	157
Maximum Gate Source Leakage Current (nA)	100
Maximum IDSS (uA)	10
Maximum Drain Source Resistance (mOhm)	4.3@10V
Typical Gate Charge @ Vgs (nC)	81@10V
Typical Gate Charge @ 10V (nC)	81
Typical Input Capacitance @ Vds (pF)	5500@40V
Maximum Power Dissipation (mW)	192000
Typical Fall Time (ns)	28
Typical Rise Time (ns)	19
Operating Temperature-Min	-55
Operating Temperature-Max	150
Packing Method	Magazine
Original Package	TO-220
Pin Count	3
Standard Package Method	TO-220
Terminal Form	Through Hole
Package Height	8.59
Package Length	10.16
Package Width	4.45
PCB changed	3
Tab	Tab
