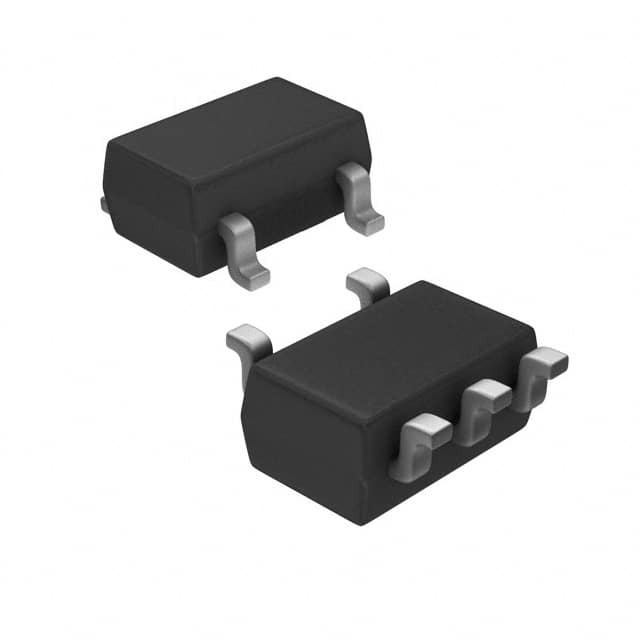

TC4S66F

SKU: 106840

Manufacturer: Toshiba

Analog Switch Single SPST 5-Pin SMV

161520 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Obsolete
Automotive	No
PPAP	No
Type	Analog Switch
Configuration	Single SPST
Switch Architecture	SPST
Number of Channels per Chip	1
Number of Inputs per Chip	1
Number of Outputs per Chip	1
Chip Enable Signals	Yes
Polarity	Non-Inverting
Maximum Propagation Delay Bus to Bus (ns)	20@10V
Maximum Turn-On Time (ns)	120@5V
Maximum Turn-Off Time (ns)	80@5V
Maximum Frequency (25°C) @ Vcc (MHz)	30(Typ)@±5V
Input Signal Type	Single
Output Signal Type	Single
Minimum Single Supply Voltage (V)	3
Typical Single Supply Voltage (V)	12
Maximum Single Supply Voltage (V)	18
Minimum Dual Supply Voltage (V)	±1.5
Typical Dual Supply Voltage (V)	±3
Maximum Dual Supply Voltage (V)	±9
Maximum On Resistance (Ohm)	950@5V
Maximum On Resistance Range (Ohm)	400 to 1000
Propagation Delay Test Condition (pF)	50
Power Supply Type	Single
Maximum Power Dissipation (mW)	200
Operating Temperature-Min	-40
Operating Temperature-Max	85
Original Package	SMV
Pin Count	5
Standard Package Method	SSOP
Terminal Form	Surface Mount
Package Height	1.1
Package Length	2.9
Package Width	1.6
PCB changed	5
