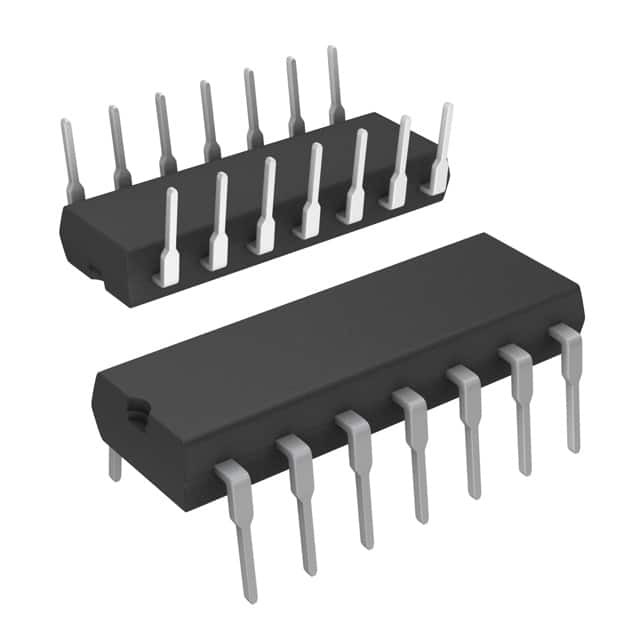

TC4066BP

SKU: 142364

Manufacturer: Toshiba

Analog Switch Quad SPST 14-Pin PDIP Magazine

70410 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.39.00.01
Automotive	No
PPAP	No
Type	Analog Switch
Configuration	Quad SPST
Switch Architecture	SPST
Number of Channels per Chip	4
Number of Inputs per Chip	4
Number of Outputs per Chip	4
Chip Enable Signals	Yes
Polarity	Non-Inverting
Maximum Propagation Delay Bus to Bus (ns)	15@15V
Maximum Turn-On Time (ns)	120@5V
Maximum Turn-Off Time (ns)	80@5V
Maximum Frequency (25°C) @ Vcc (MHz)	30(Typ)@±5V
Input Signal Type	Single
Output Signal Type	Single
Minimum Single Supply Voltage (V)	3
Typical Single Supply Voltage (V)	5
Maximum Single Supply Voltage (V)	18
Maximum On Resistance (Ohm)	950@5V
Maximum On Resistance Range (Ohm)	400 to 1000
Propagation Delay Test Condition (pF)	50
Power Supply Type	Single
Maximum Power Dissipation (mW)	300
Operating Temperature-Min	-40
Operating Temperature-Max	85
Packing Method	Magazine
Original Package	PDIP
Pin Count	14
Standard Package Method	DIP
Terminal Form	Through Hole
Package Height	3.5
Package Length	19.75(Max)
Package Width	6.4
PCB changed	14
