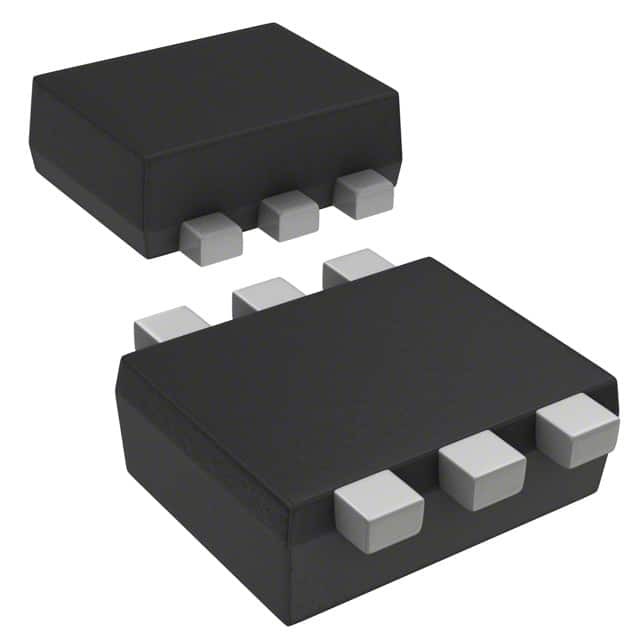

SSM6N35FE

SKU: 64358

Manufacturer: Toshiba

Trans MOSFET N-CH Si 20V 0.18A Automotive 6-Pin ES

240 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
Automotive	Yes
PPAP	Unknown
Product Category	Small Signal
Body Material	Si
Configuration	Dual
Channel Mode	Enhancement
Channel Type	N
Number of Elements per pcs	2
Maximum Drain Source Voltage (V)	20
Maximum Gate Source Voltage (V)	±10
Maximum Continuous Drain Current (A)	0.18
Maximum Drain Source Resistance (mOhm)	3000@4V
Typical Input Capacitance @ Vds (pF)	9.5@3V
Maximum Power Dissipation (mW)	150
Operating Temperature-Min	-55
Operating Temperature-Max	150
Original Package	ES
Pin Count	6
Terminal Form	Surface Mount
Package Length	1.6
Package Width	1.2
PCB changed	6
