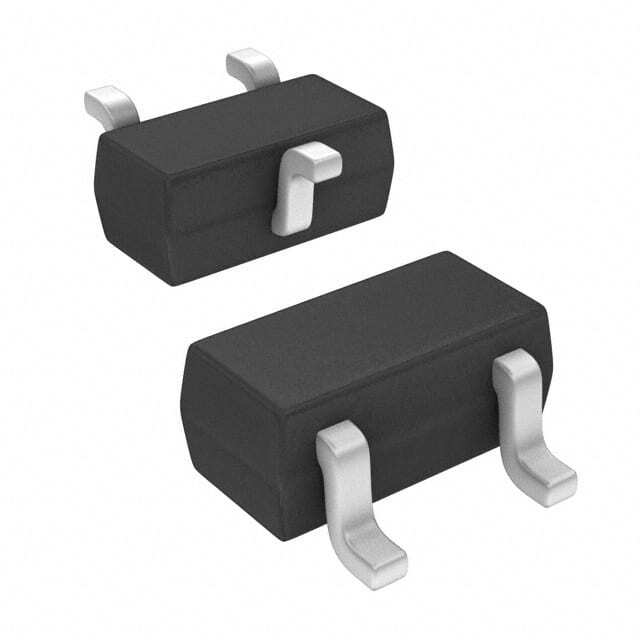

SSM3K56FS

SKU: 78349

Manufacturer: Toshiba

Trans MOSFET N-CH Si 20V 0.8A Automotive 3-Pin SSM

8820 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
Automotive	Yes
PPAP	Unknown
Product Category	Small Signal
Body Material	Si
Configuration	Single
Channel Mode	Enhancement
Channel Type	N
Number of Elements per pcs	1
Maximum Drain Source Voltage (V)	20
Maximum Gate Source Voltage (V)	±8
Maximum Gate Threshold Voltage (V)	1
Maximum Continuous Drain Current (A)	0.8
Maximum Gate Source Leakage Current (nA)	1000
Maximum IDSS (uA)	1
Maximum Drain Source Resistance (mOhm)	235@4.5V
Typical Gate Charge @ Vgs (nC)	1@4.5V
Typical Input Capacitance @ Vds (pF)	55@10V
Maximum Power Dissipation (mW)	500
Operating Temperature-Min	-55
Operating Temperature-Max	150
Original Package	SSM
Pin Count	3
Standard Package Method	SSM
Terminal Form	Surface Mount
Package Height	0.7
Package Length	1.6
Package Width	0.8
PCB changed	3
