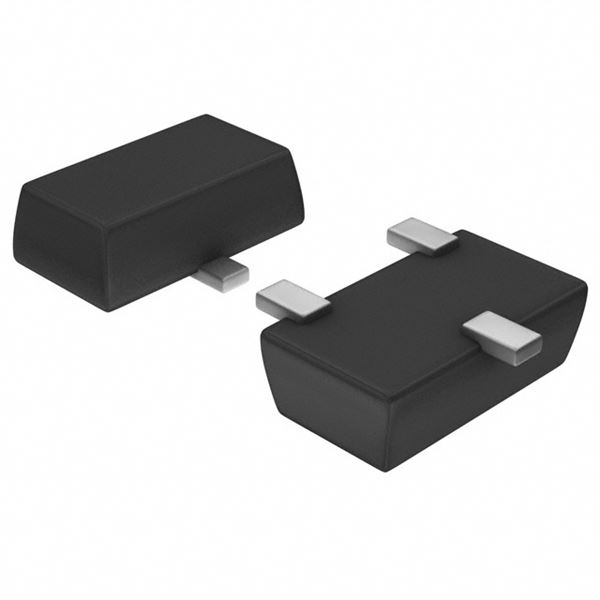

SSM3K2615R

SKU: 135066

Manufacturer: Toshiba

Trans MOSFET N-CH Si 60V 2A Automotive 3-Pin SOT-23F

1860 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8541.29.00.95
Automotive	Yes
PPAP	Unknown
Product Category	Power MOSFET
Body Material	Si
Configuration	Single
Channel Mode	Enhancement
Channel Type	N
Number of Elements per pcs	1
Maximum Drain Source Voltage (V)	60
Maximum Gate Source Voltage (V)	±20
Maximum Gate Threshold Voltage (V)	2
Maximum Continuous Drain Current (A)	2
Maximum Gate Source Leakage Current (nA)	10000
Maximum IDSS (uA)	1
Maximum Drain Source Resistance (mOhm)	300@10V
Typical Gate Charge @ Vgs (nC)	6@10V
Typical Gate Charge @ 10V (nC)	6
Typical Input Capacitance @ Vds (pF)	150@10V
Maximum Power Dissipation (mW)	2000
Typical Fall Time (ns)	50
Typical Rise Time (ns)	25
Operating Temperature-Min	-55
Operating Temperature-Max	150
Supplier Temperature Grade	Automotive
Original Package	SOT-23F
Pin Count	3
Standard Package Method	SOT
Terminal Form	Surface Mount
Package Length	2.9
Package Width	1.8
PCB changed	3
