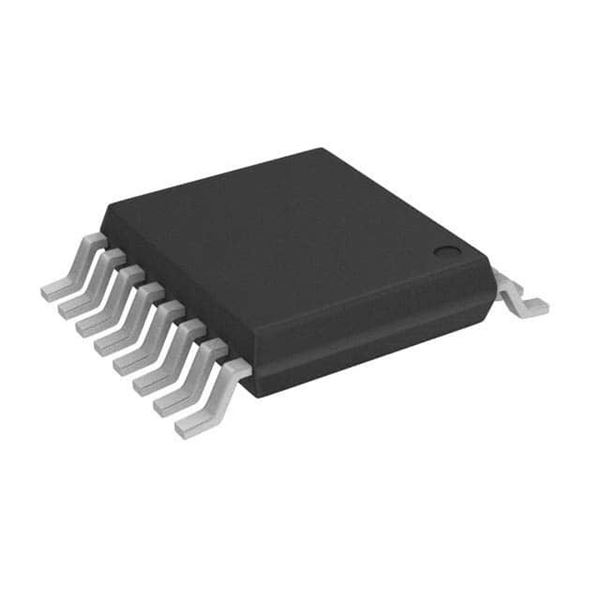

74VHC4052AFT

SKU: 10152

Manufacturer: Toshiba

Analog Multiplexer Triple 2:1 Automotive 16-Pin TSSOP-B T/R

20650 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.39.00.01
Automotive	Yes
PPAP	Unknown
Type	Analog Multiplexer
Number of Channels per Chip	2
Number of Inputs per Chip	8
Number of Outputs per Chip	2
Chip Enable Signals	Yes
Maximum Propagation Delay Bus to Bus (ns)	6@5V
Maximum Turn-On Time (ns)	25@2.5V
Maximum Turn-Off Time (ns)	25@2.5V
Maximum Frequency (25°C) @ Vcc (MHz)	200(Typ)@3V
Input Signal Type	Single
Output Signal Type	Single
Minimum Single Supply Voltage (V)	2
Typical Single Supply Voltage (V)	3
Maximum Single Supply Voltage (V)	5.5
Maximum Low Level Output Current (mA)	25
Maximum High Level Output Current (mA)	25
Maximum On Resistance (Ohm)	86@3V
Maximum On Resistance Range (Ohm)	80 to 100
Propagation Delay Test Condition (pF)	50
Power Supply Type	Single
Maximum Power Dissipation (mW)	180
Operating Temperature-Min	-40
Operating Temperature-Max	85
Supplier Temperature Grade	Automotive
Packing Method	Tape and Reel
Original Package	TSSOP-B
Pin Count	16
Standard Package Method	SOP
Terminal Form	Surface Mount
Package Height	1
Package Width	4.4
PCB changed	16
