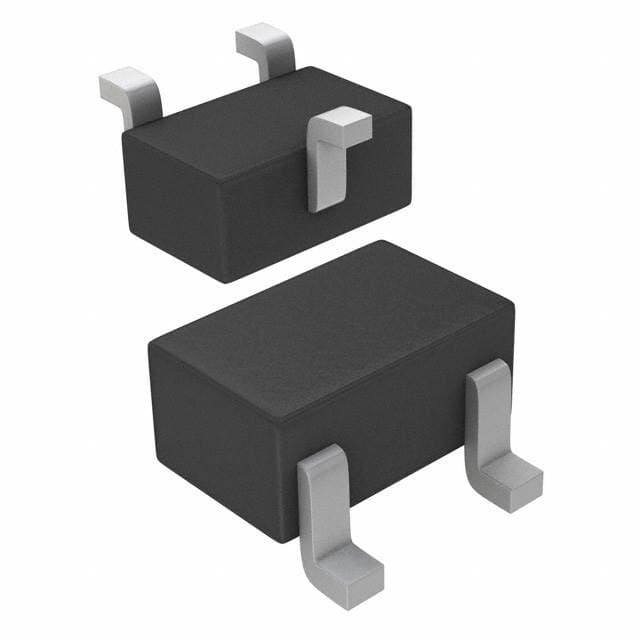

2SC4215-Y

SKU: 5971

Manufacturer: Toshiba

Trans RF BJT NPN 30V 0.02A 3-Pin USM

1480 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Not Compliant
ECCN (US)	EAR99
Part Status	Obsolete
Automotive	No
PPAP	No
Type	NPN
Body Material	Si
Configuration	Single
Number of Elements per pcs	1
Collector Base Voltage-Max (V)	40
Collector-Emitter Voltage-Max (V)	30
Collector-Emitter Voltage Range-Max (V)	30 to 40
Maximum Emitter Base Voltage (V)	4
Maximum DC Collector Current (A)	0.02
Maximum DC Collector Current Range (A)	0.001 to 0.06
Maximum Emitter Cut-Off Current (nA)	500
Maximum Collector Cut-Off Current (nA)	100
Operational Bias Conditions	6V/1mA
Minimum DC Current Gain	100@1mA@6V
Minimum DC Current Gain Range	50 to 120
Maximum Power Dissipation (mW)	100
Typical Power Gain (dB)	23
Maximum Transition Frequency (MHz)	550(Typ)
Maximum Noise Figure (dB)	5
Operating Temperature-Min	-55
Operating Temperature-Max	125
Original Package	USM
Pin Count	3
Terminal Form	Surface Mount
Package Height	0.9
Package Length	2
Package Width	1.25
