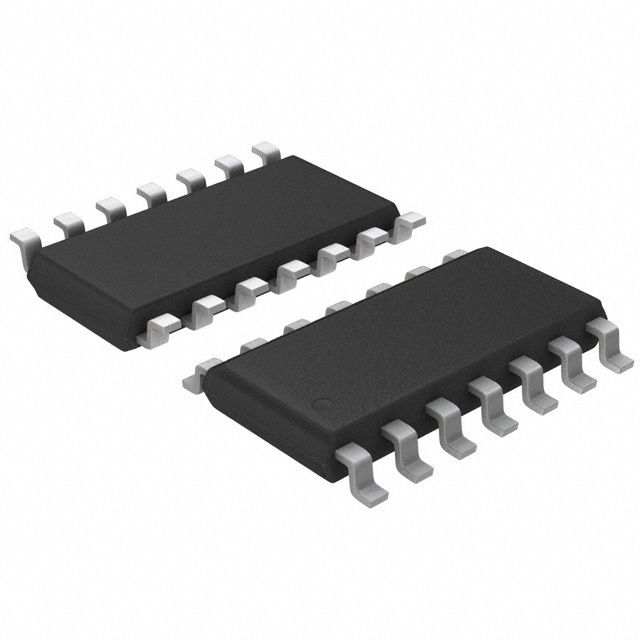

UCC27714D

SKU: 135640

Manufacturer: Texas Instruments

Driver 4A 2-OUT High Side/Low Side Full Brdg/Half Brdg Non-Inv 14-Pin SOIC Tube

1900 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.39.00.01
Automotive	No
PPAP	No
Driver Type	High Side
Driver Configuration	Non-Inverting
Bridge Type	Full Bridge
Number of Drivers	2
High and Low Sides Dependency	Independent
Type	IGBT
Number of Outputs	2
Maximum Rise Time (ns)	30
Maximum Fall Time (ns)	30
Maximum Propagation Delay Time (ns)	125
Input Logic Compatibility	CMOS
Operating Supply Voltage-Min (V)	10
Operating Supply Voltage-Max (V)	17
Typical Input Low Threshold Voltage (V)	1.6
Typical Input High Threshold Voltage (V)	2.3
Peak Output Current (A)	4
Output Resistance (Ohm)	3.75
Operating Temperature-Min	-40
Operating Temperature-Max	125
Special Features	Under Voltage Lockout
Maximum Turn-On Delay Time (ns)	100
Maximum Turn-Off Delay Time (ns)	100
Latch-Up Proof	No
Packing Method	Tube
Pin Count	14
Standard Package Method	SOP
Original Package	SOIC
Terminal Form	Surface Mount
Package Height	1.5(Max)
Package Length	8.75(Max)
Package Width	4(Max)
PCB changed	14
