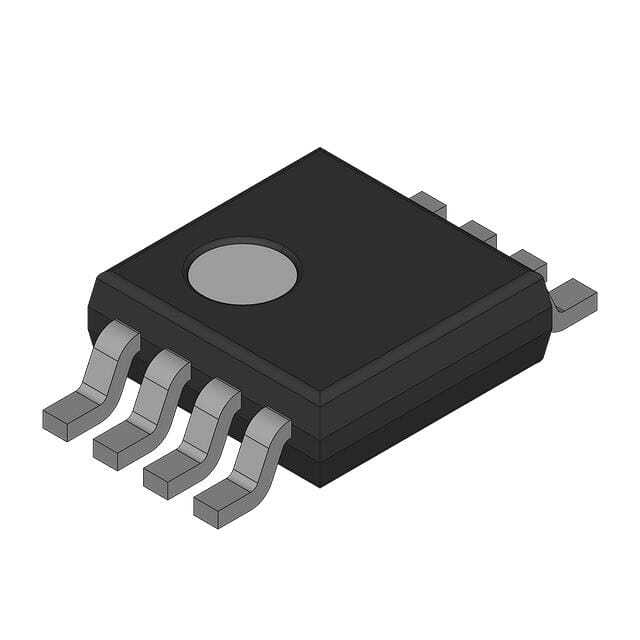

UCC27524DGN

SKU: 31240

Manufacturer: Texas Instruments

Driver 5A 2-OUT Low Side Non-Inv 8-Pin HVSSOP EP Tube

2760 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.39.00.01
Automotive	No
PPAP	No
Driver Type	Low Side
Driver Configuration	Non-Inverting
Number of Drivers	2
Type	IGBT
Number of Outputs	2
Maximum Rise Time (ns)	18
Maximum Fall Time (ns)	10
Maximum Propagation Delay Time (ns)	23
Input Logic Compatibility	CMOS
Operating Supply Voltage-Min (V)	4.5
Typical Operating Supply Voltage (V)	12
Operating Supply Voltage-Max (V)	18
Typical Input Low Threshold Voltage (V)	1.2
Typical Input High Threshold Voltage (V)	2.1
Peak Output Current (A)	5(Typ)
Output Resistance (Ohm)	0.5
Operating Temperature-Min	-40
Operating Temperature-Max	140
Special Features	Under Voltage Lockout
Packing Method	Tube
Pin Count	8
Standard Package Method	SOP
Original Package	HVSSOP EP
Terminal Form	Surface Mount
Package Height	0.95(Max)
Package Length	3.1(Max)
Package Width	3.1(Max)
PCB changed	8
