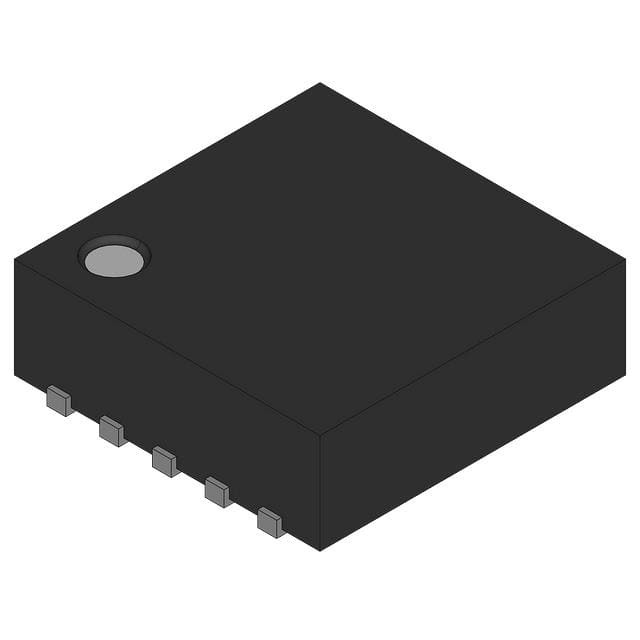

TS3USB221DRCR

SKU: 149786

Manufacturer: Texas Instruments

Analog Multiplexer Single 2:1 10-Pin VSON EP T/R

32970 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.39.00.01
Automotive	No
PPAP	No
Type	Analog Multiplexer
Number of Channels per Chip	1
Number of Inputs per Chip	4
Number of Outputs per Chip	2
Chip Enable Signals	Yes
Maximum Data Rate (Mbps)	480
Maximum Propagation Delay Bus to Bus (ns)	0.25(Typ)@3.3V
Maximum Turn-On Time (ns)	50@2.5V@-40C to 85C
Maximum Turn-Off Time (ns)	23@2.5V@-40C to 85C
Maximum Frequency (25°C) @ Vcc (MHz)	1100(Typ)@3.3V@-40C to 85C
Input Signal Type	Differential
Output Signal Type	Differential
Minimum Single Supply Voltage (V)	2.3
Typical Single Supply Voltage (V)	3
Maximum Single Supply Voltage (V)	3.6
Maximum Supply Current (mA)	0.03@3.6V
Maximum Low Level Output Current (mA)	64
Maximum High Level Output Current (mA)	64
Maximum On Resistance (Ohm)	6@3V
Maximum On Resistance Range (Ohm)	5 to 10
Power Supply Type	Single
Operating Temperature-Min	-40
Operating Temperature-Max	85
Packing Method	Tape and Reel
Pin Count	10
Standard Package Method	SON
Original Package	VSON EP
Terminal Form	Surface Mount
Package Height	0.95(Max)
Package Length	3.1(Max)
Package Width	3.1(Max)
PCB changed	10
